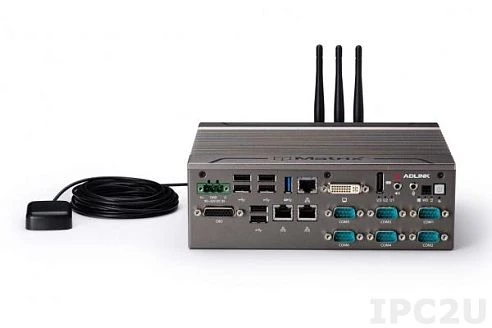

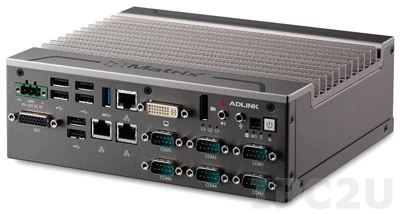

MXE-1401

MXE-1401

ADLink
SKU: 06978100
Intel Atom Intel E3845 fanless embedded controller with 2GB DDR3L RAM, DVI-I+DisplayPort, 3x GbE, 6x COM, 6x USB 2.0, 1x USB 3.0, 8x isolated DI/O, 1x SATA III, USIM, CFast, 2x mPCIe, Audio
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Ethernet
Controller Type
Intel i211
SFP 100/1000 Mbit/s Ports
3
Interfaces
COM Total
6
RS-232/422/485
4
USB Total
7
USB 2.0
6
USB v3.x
1
Digital Input-Output
Isolation DIO
Yes
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software

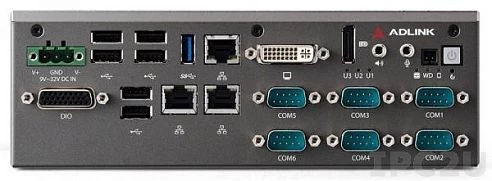

Connectors
Connectors
6xDB9, DVI-I, 3xRJ45, 3xRJ45 Ethernet, 7xUSB, Audio, Display Port, DC input (terminal block), 1xDB25 DIO, DB25 Female DIO
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
210 mm
Height
170 mm
Depth
70 mm
Operating Conditions
Operating Temperature
-40..85 °C
Vibration
5Grms, 5-500 Hz, 3 axes w/ SSD
Shock
Operating 100G, half sine 11 ms duration w/ SDD
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL
Dimensions
Net Weight
2 kg
Gross Weight
3 kg
