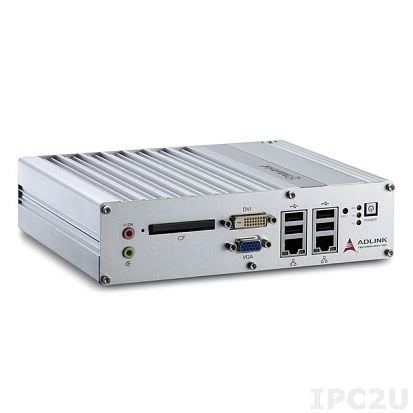

MXE-1302
ADLink
SKU: 07156600
Intel Atom D2550+NM10 fanless embedded controller with 2GB DDR3 SODIMM, DVI, VGA, 3xGbE, 4xCOM, 6xUSB, 4xDIO, 1x mPCIe+USIM, 1xCF, 2.5" HDD Bay, 9...36V DC-in
Price on request
Available
Available
Construction
Mounting Configuration
Embedded, Desktop, Wall, Wall VESA 100
Type
Fanless
CPU
Processor Installed
Intel Atom N2600
Socket
CPU onboard
Max CPU frequency
1.6 GHz
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Assembly
Removable
Ethernet
Controller Type
Intel 82574L 10/100/1000 Mbps
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
6
USB 2.0
6
Digital Input-Output
Channels of DIO
8
Drive interfaces
CompactFlash Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G (Optional)
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Audio Out, Mic In, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
6 V
Software
Operating System Compatibility
Windows Embedded Compact 7, Windows XP, Windows XP Embedded, Windows 7, Windows Embedded Standard 7, Linux OS
Dimensions and weight
Width
210 mm
Height
53 mm
Depth
170 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
Operating, 5 Grms, 5-500 Hz, 3 axes (w/ CF or SSD)
Shock
Operating, 100 G, half sine 11 ms duration (w/ CF or SSD)
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Gross Weight
3 kg
