Industrial Computers
Embedded Edge PC, Industrial Box / Mini-PC
Embedded Industrial Edge Computer
MVS900-511-FL

MVS900-511-FL

AXIOMTEK
SKU: 08710400

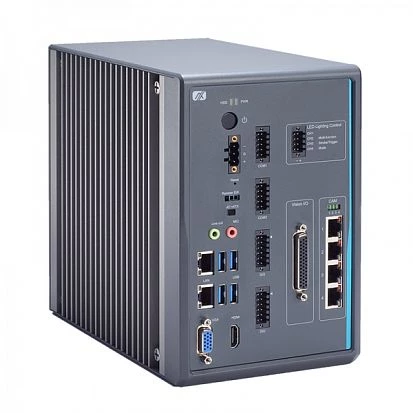

Fanless Vision System with LGA1151 socket for 7th/6th gen Intel Core i7/i5/i3/Celeron CPU, Intel H110, HDMI, VGA, 4xIEEE802.3at PoE GbE LAN, 2xGbE LAN, 2xCOM, 4xUSB 3.0, Audio, DIO, 2x2.5" HDD Bays, PCIe Mini, 24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
16
Isolation DIO
Yes
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, HDMI, 6xRJ45 Ethernet, 4xUSB, Mic In, Line Out, 2xCOM (terminal block), 2xDIO (terminal block), 2xSIM Card Slot, DB44 Male, Terminal block
System Power Input
Input Voltage DC
19 V
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
230 mm
Height
135 mm
Depth
210 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
