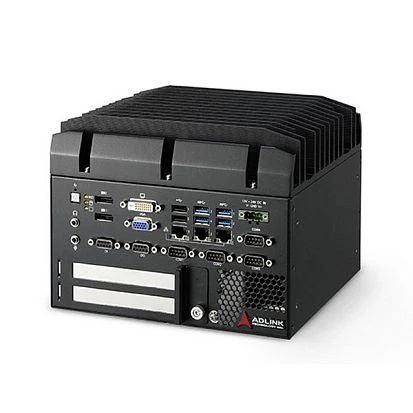

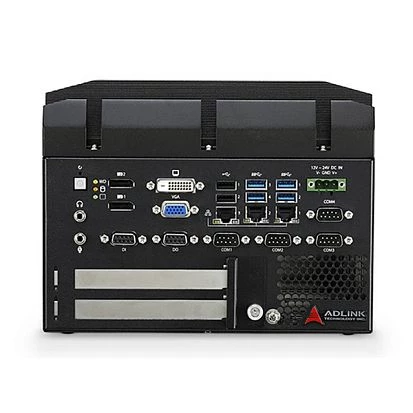

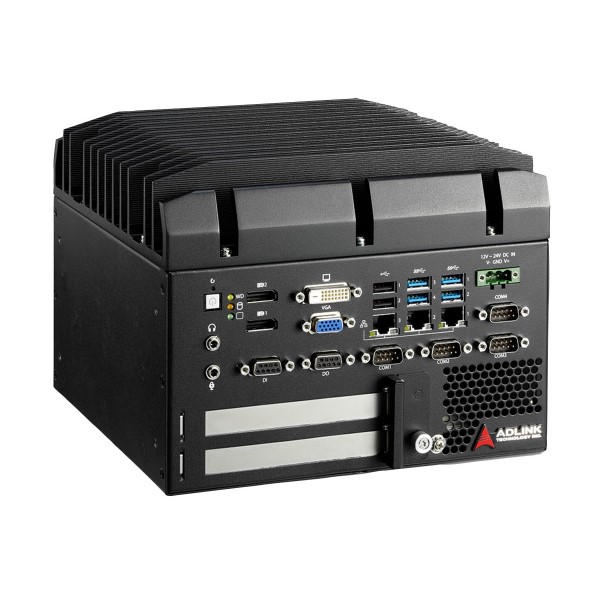

MVP-6001

MVP-6001

ADLink
SKU: 07156700
Intel Skylake-S i7-6700TE+H110 fanless embedded controller with 4GB DDR4 SODIMM, DVI, VGA, 2xDP, 3xGbE, 4xCOM, 4xUSB 3.0, 2xUSB 2.0, 1xSATA, 1xCFast, 8xDI, 8xDO, 1x mPCIe, 1xUSIM, Audio, 1x PCIe x16, 1xPCI, 12...24V DC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i7-6700TE
Max CPU frequency
3.4 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
7
USB 2.0
3
USB v3.x
4
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
PCI Express x16
1
Mini-PCI
1
PCI
1
SIM Card slots
1
Connectors
Connectors
4xDB9, DVI, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, 2xDisplayPort, DC input (terminal block), 2xDB15 GPIO
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
160 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Fedora, Ubuntu Linux (12.04+), Windows 10
Dimensions and weight
Width
220 mm
Height
170 mm
Depth
210 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5 Grms, 5-500 Hz
Shock
100 Grms, half sine 11ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL/cUL, CB
Dimensions
Gross Weight
3 kg
Construction
Construction Chassis
