miniBASE-10R

miniBASE-10R

ADLink
SKU: 09387800

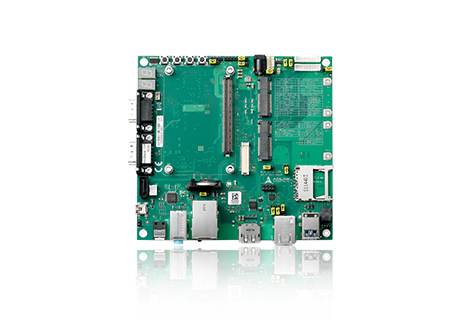

COM Express Type 10 Reference Carrier Board, DP, LVDS, 2xUSB 3.0, 2xUSB 2.0, 1xUSB client, SD slot, 2x mini PCIe (1x mSATA)
Price on request
Available
Available

System Architecture
Form Factor
COM Express Mini
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC262
Dimensions and weight
Width
150 mm
Length
142 mm
Operating Conditions
Humidity
0-95%
Dimensions
Net Weight
0.34 kg
Gross Weight
0.36 kg
System Architecture
Form Factor
COM Express Mini
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC262
Dimensions and weight
Width
150 mm
Length
142 mm
Operating Conditions
Humidity
0-95%
Dimensions
Net Weight
0.34 kg
Gross Weight
0.36 kg
