MEVA-3110

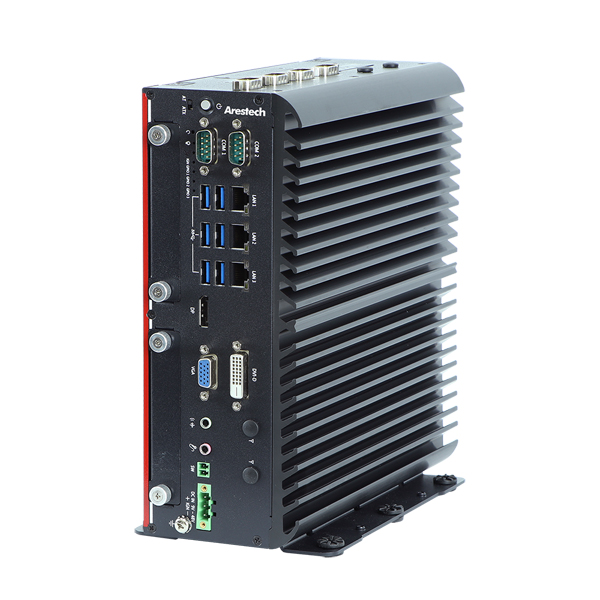

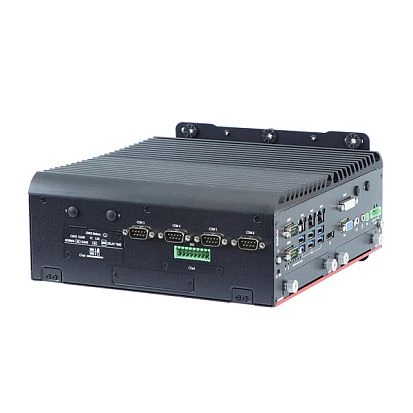

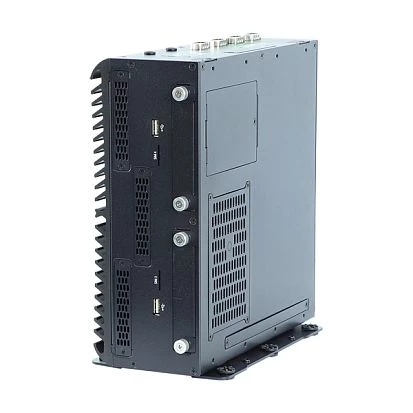

MEVA-3110 Embedded Box PC with Intel Core i3/i5/i7, up to 64GB DDR4 RAM, 4x SATA Drive Bay, 8x USB, 6x COM The MEVA-3110 is a powerful high performance embedded box PC for applications such as Machine Vision and Artificial Intelligence (AI), featuring scalable performance with an unusual number of interfaces and multiple redundant connections to the network, as well as high memory capacity for system-critical and data-intensive processes. For scalable performance, the MEVA-3110 provides an Intel LGA1151 socket supporting 8th and 9th generation Intel Core i3/i5/i7 CPUs, opening up numerous options from a dual core to an octa core processor. As memory, the Embedded Box PC uses up to 64GB DDR4 RAM in two modules in parallel dual channel mode. With four drive bays for 2.5'' HDD or SSD as well as mSATA via two of four Mini PCI Express expansion slots, the Embedded Box PC allows numerous configurations, which allow an optimization of the performance or data security by an internal hardware RAID 0/1/10/5. Among the interfaces of the MEVA-3110 are Triple LAN with Gigabit Ethernet, eight USB ports, six Serial COM ports RS232/422/485 with Auto Flow and three graphic outputs in DVI-D, VGA and DisplayPort (DP). Among the tasks of the embedded box PC MEVA-3110 are powerful and scalable IoT applications, automation of buildings or production processes of industry 4.0 as well as mobile applications e.g. as transportation PC.
