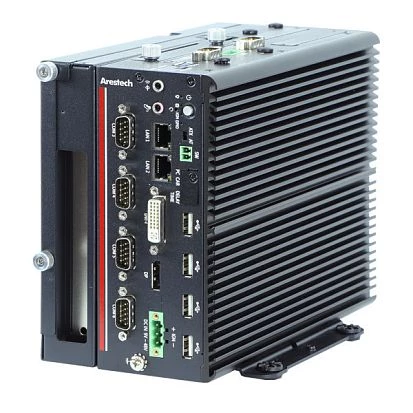

MEVA-2011E
Arestech
SKU: 57211700
Machine Vision Computer, Intel Celeron J1900 CPU, DDR3L up to 8GB, DVI-D, DP, 2xGbE, 5xUSB, 6xRS232/422/485, 2xmSATA, 2x2.5" SATA Bay, 1xPCIe x4 (1 lane), 9..48VDC, -40..70C operating temp
Price on request
Available
Available
MEVA-2011E Embedded Box PC uses Intel Celeron J1900, up to 8GB DDR3L RAM, 2x SATA Drive Bay, Dual LAN, 5x USB, 6x COM.
The MEVA-2011E is a Machine Vision GPU Embedded Box PC designed for complex tasks, distinguished by efficient baseline performance with significantly expandable performance through a discrete expansion card for special tasks, connecting these with two 2.5" drive bays for internal and external drives.
As processor, the MEVA-2011E uses the Quad Core CPU Intel Celeron J1900 from the mobile devices and embedded box PC segment, which operates at a maximum clock frequency of 2.42 GHz as Turbo Boost frequency while exhibiting very low power loss of only 10 Watts TDP. For temporary and permanent data storage, the Industrial Computer uses 8GB DDR3L Low Energy RAM as working memory and two 2.5" SATA Drive Bays for SSD/HDD drives - one of these can serve internally for the operating system, the other externally for user data, to create maximum fail-safety. The I/O of the MEVA-2011E includes, among other interfaces, six Serial COM Ports in RS232/422/485 design, five USB 3.0/2.0, 1x 8 Channel GPIO and Dual LAN for Gigabit Ethernet. Typical applications for the Embedded Box PC include automation in Industry 4.0 and buildings, individual systems for technical monitoring and surveillance of facilities or production machines.
MEVA-2011E Embedded Box PC uses Intel Celeron J1900, up to 8GB DDR3L RAM, 2x SATA Drive Bay, Dual LAN, 5x USB, 6x COM.
The MEVA-2011E is a Machine Vision GPU Embedded Box PC designed for complex tasks, distinguished by efficient baseline performance with significantly expandable performance through a discrete expansion card for special tasks, connecting these with two 2.5" drive bays for internal and external drives.
As processor, the MEVA-2011E uses the Quad Core CPU Intel Celeron J1900 from the mobile devices and embedded box PC segment, which operates at a maximum clock frequency of 2.42 GHz as Turbo Boost frequency while exhibiting very low power loss of only 10 Watts TDP. For temporary and permanent data storage, the Industrial Computer uses 8GB DDR3L Low Energy RAM as working memory and two 2.5" SATA Drive Bays for SSD/HDD drives - one of these can serve internally for the operating system, the other externally for user data, to create maximum fail-safety. The I/O of the MEVA-2011E includes, among other interfaces, six Serial COM Ports in RS232/422/485 design, five USB 3.0/2.0, 1x 8 Channel GPIO and Dual LAN for Gigabit Ethernet. Typical applications for the Embedded Box PC include automation in Industry 4.0 and buildings, individual systems for technical monitoring and surveillance of facilities or production machines.
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i210AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
5
USB 2.0
4
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
1
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2
Connectors
Connectors
6xDB9, DVI-D, 2xRJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, Display Port, 4xUSB (4-pin), 10-pin connector
System Power Input
Input Voltage DC
9 V
Power Consumption
15 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
107 mm
Height
168 mm
Depth
216 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5 Grms, 5-500 Hz, 3 Axis
Shock
50 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE, CE/FCC, FCC
Dimensions
Net Weight
2.7 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
