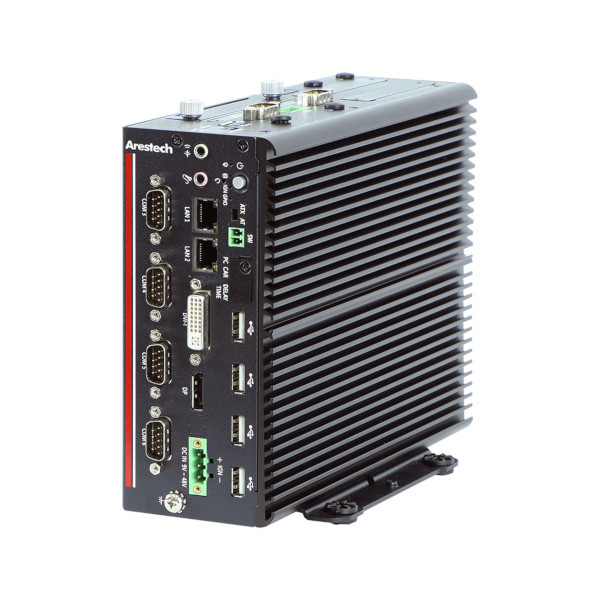

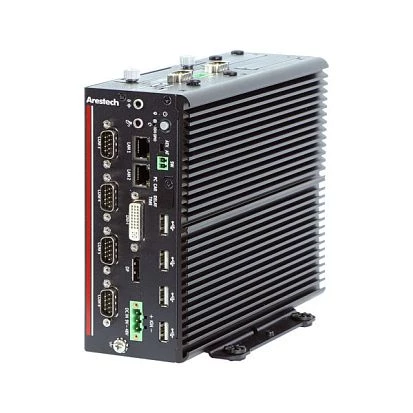

MEVA-2010
Arestech
SKU: 57211600
Machine Vision Computer, Intel Celeron J1900 CPU, DDR3L up to 8GB, DVI-D, DP, 2xGbE, 5xUSB, 6xRS232/422/485, 2xmSATA, 2x2.5" SATA Bay, 9..48VDC, -40..70C operating temp
Price on request
Available
Available
MEVA-2010 Embedded Box PC with Intel Celeron J1900 CPU, up to 8GB DDR3 RAM,5xUSB, 6xSerIalCOM Using an Intel Celeron J1900 Quad Core CPU, the MEVA-2010 is an efficient embedded box PC with a versatile I/O, which includes a redundant connection to the network as well as a high number of interfaces including USB, Serial COM RS232/422/485 and an 8 bit GPIO to create a universal platform for industrial applications. With the Intel Celeron J1900, the MEVA-2010 uses an equally proven and efficient Quad Core CPU with a maximum clock frequency of 2.42 GHz and a low power dissipation of 10 Watts TDP, which belongs to Intel‘s segment of CPUs for mobile use and embedded box PCs. For memory, the MEVA-2010 uses a single memory bank for DDR3L low energy modules up to 8 GB RAM. For mass storage media, a 2.5'' drive bay and an M.2 or Mini PCIe for mSATA SSD are featured. Interfaces for I/O include five USB ports in USB 3.0 and 2.0, six-way Serial COM RS232/422/485 with Auto Flow over DB9, as well as an 8-bit GPIO and dual LAN with 10/100/1000 Mbps for redundant networking. Practical applications for the MEVA-2010 embedded box PC include IoT and automation applications that require high efficiency under continuous 24/7/365 operation
MEVA-2010 Embedded Box PC with Intel Celeron J1900 CPU, up to 8GB DDR3 RAM,5xUSB, 6xSerIalCOM Using an Intel Celeron J1900 Quad Core CPU, the MEVA-2010 is an efficient embedded box PC with a versatile I/O, which includes a redundant connection to the network as well as a high number of interfaces including USB, Serial COM RS232/422/485 and an 8 bit GPIO to create a universal platform for industrial applications. With the Intel Celeron J1900, the MEVA-2010 uses an equally proven and efficient Quad Core CPU with a maximum clock frequency of 2.42 GHz and a low power dissipation of 10 Watts TDP, which belongs to Intel‘s segment of CPUs for mobile use and embedded box PCs. For memory, the MEVA-2010 uses a single memory bank for DDR3L low energy modules up to 8 GB RAM. For mass storage media, a 2.5'' drive bay and an M.2 or Mini PCIe for mSATA SSD are featured. Interfaces for I/O include five USB ports in USB 3.0 and 2.0, six-way Serial COM RS232/422/485 with Auto Flow over DB9, as well as an 8-bit GPIO and dual LAN with 10/100/1000 Mbps for redundant networking. Practical applications for the MEVA-2010 embedded box PC include IoT and automation applications that require high efficiency under continuous 24/7/365 operation
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i210AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
5
USB 2.0
4
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2
Connectors
Connectors
6xDB9, DVI-D, 2xRJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, Display Port, 4xUSB (4-pin), 10-pin connector
System Power Input
Input Voltage DC
9 V
Power Consumption
15 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
73.5 mm
Height
168 mm
Depth
215 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5 Grms, 5-500 Hz, 3 Axis
Shock
50 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE, CE/FCC, FCC
Dimensions
Net Weight
1.8 kg
Gross Weight
4 kg
