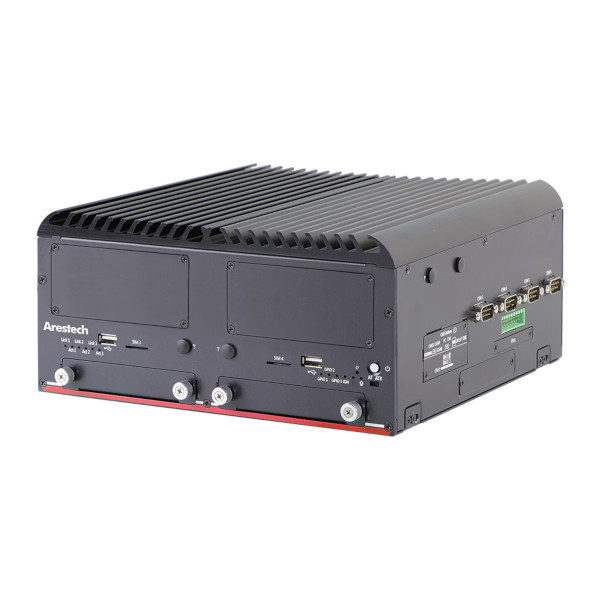

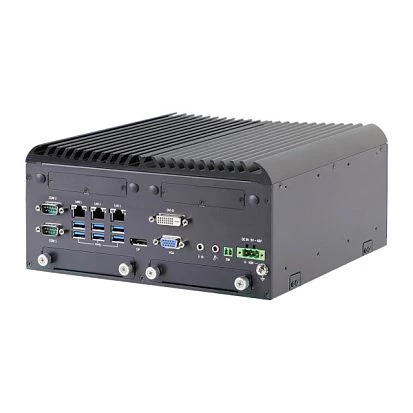

MERA-3120

MERA-3120

Arestech
SKU: 57197600
Rugged Box PC, 9th/8th Gen Intel Core i3/5/7 35W CPU, up to 64GB DDR4 RAM, VGA, DVI-D, DP, 8xUSB, 6xCOM, GPIO, 3xGbit LAN, 2xUniversal I/O Bracket, 4x2.5" SATA (RAID 0,1,5,10), 2xCFast/mSATA/Mini-PCIe, 4xSIM, Audio, 9..48VDC, -40..70C
End-of-life product

Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Desktop, Wall
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 630
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
4
M.2
2
Mini-PCIe/Mini Card
4
SIM Card slots
4
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, SIM Card Slot, GPIO (terminal block), 2xUSB (4-pin)
System Power Input
Input Voltage DC
9 V
Power Consumption
90 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
241.5 mm
Height
230 mm
Depth
92.6 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5 Grms, 5-500 Hz, 3 Axis
Shock
50 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
4.1 kg
Gross Weight
7 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Desktop, Wall
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 630
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
4
M.2
2
Mini-PCIe/Mini Card
4
SIM Card slots
4
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, SIM Card Slot, GPIO (terminal block), 2xUSB (4-pin)
System Power Input
Input Voltage DC
9 V
Power Consumption
90 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
241.5 mm
Height
230 mm
Depth
92.6 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5 Grms, 5-500 Hz, 3 Axis
Shock
50 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
4.1 kg
Gross Weight
7 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Desktop, Wall
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 630
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
4
M.2
2
Mini-PCIe/Mini Card
4
SIM Card slots
4
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, SIM Card Slot, GPIO (terminal block), 2xUSB (4-pin)
System Power Input
Input Voltage DC
9 V
Power Consumption
90 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
241.5 mm
Height
230 mm
Depth
92.6 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5 Grms, 5-500 Hz, 3 Axis
Shock
50 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
4.1 kg
Gross Weight
7 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Desktop, Wall
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 630
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
4
M.2
2
Mini-PCIe/Mini Card
4
SIM Card slots
4
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, SIM Card Slot, GPIO (terminal block), 2xUSB (4-pin)
System Power Input
Input Voltage DC
9 V
Power Consumption
90 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
241.5 mm
Height
230 mm
Depth
92.6 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5 Grms, 5-500 Hz, 3 Axis
Shock
50 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
4.1 kg
Gross Weight
7 kg

Documentation
Mera-3100-Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
Documentation
Mera-3100-Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
Documentation
Mera-3100-Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
Documentation
Mera-3100-Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
