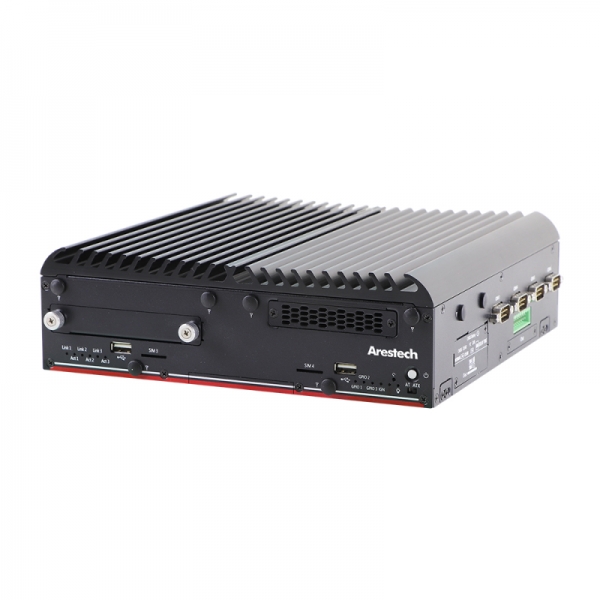

MERA-3110-7L

MERA-3110-7L

Arestech
SKU: 57304500
Rugged Fanless Box PC, 9th/8th Intel Core i3/5/7 35W CPU, up to 64GB RAM, VGA, DVI-D, DP, 8xUSB, 6xCOM, GPIO, 7xGbit LAN, 1xFlexible I/O Bracket, 4x2.5" SATA, 2xCFast/mSATA shared byMini-PCIe, 4xSIM, Audio, 9..48VDC, -40..70C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
7
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB 2.0
2
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
4
Mini-PCIe/Mini Card
4
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, 8xUSB, Mic In, Line In, Display Port, 7xRJ45 Ethernet
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
241.5 mm
Height
92.6 mm
Depth
230 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
4.15 kg
Gross Weight
7 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
7
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB 2.0
2
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
4
Mini-PCIe/Mini Card
4
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, 8xUSB, Mic In, Line In, Display Port, 7xRJ45 Ethernet
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
241.5 mm
Height
92.6 mm
Depth
230 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
4.15 kg
Gross Weight
7 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
7
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB 2.0
2
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
4
Mini-PCIe/Mini Card
4
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, 8xUSB, Mic In, Line In, Display Port, 7xRJ45 Ethernet
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
241.5 mm
Height
92.6 mm
Depth
230 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
4.15 kg
Gross Weight
7 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
7
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB 2.0
2
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
4
Mini-PCIe/Mini Card
4
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, 8xUSB, Mic In, Line In, Display Port, 7xRJ45 Ethernet
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
241.5 mm
Height
92.6 mm
Depth
230 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
4.15 kg
Gross Weight
7 kg

Documentation
Mera-3100-Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
Documentation
Mera-3100-Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
Documentation
Mera-3100-Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
Documentation
Mera-3100-Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows

Get a Quote

Arestech
SKU: 57304500
MERA-3110-7L
MERA-3110-7L
MERA-3110-7L
