MERA-2001-2L

MERA-2001-2L

Arestech
SKU: 57307700

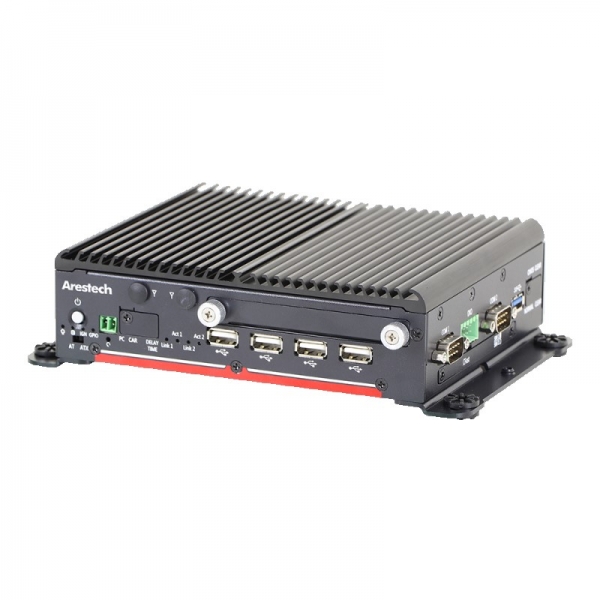

Rugged Box PC, Intel Celeron J1900 CPU, Up to 8GB DDR3L SO-DIMM, DVI-D, DP, 5xUSB, 2xCOM, isolated GPIO, 2xGbit LAN, 2x2.5" SATA, 1xCFast/mSATA/Mini-PCIe, 1xMini-PCIe, 2xSIM, 4xAntenna holes, Audio, CMOS Battery, 9..48VDC, -40..70C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Memory
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, DVI-I, 5xUSB, Mic In, Line Out, DC Input, Display Port
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
168 mm
Height
62 mm
Depth
135 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.45 kg
Gross Weight
2.1 kg
