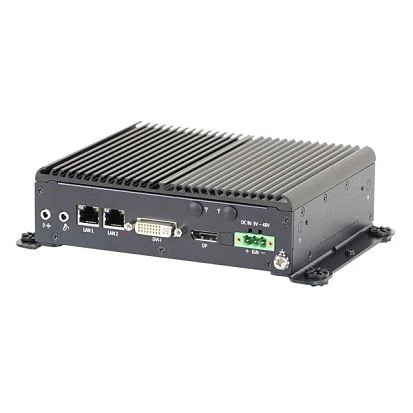

MERA-2000
Arestech
SKU: 57206000
Rugged Box PC, Intel Celeron J1900 CPU, Up to 8GB DDR3L SO-DIMM, DVI-D, DP, 5xUSB, 2xCOM, isolated GPIO, 2xGbE, 1x2.5" SATA, 1xCFast/mSATA/Mini-PCIe, 1xMini-PCIe, 2xSIM, 6xAntenna holes, Audio, CMOS Battery, 9..48VDC, -40..70C
Price on request
Available on order
Available on order
MERA-2000
MERA-2000 Embedded Box PC with Intel Celeron J1900, up to 8 GB DDR3L RAM, Fanless Rugged Design, Dual LAN, 2xCOM, 5xUSB The MERA-2000 is a compact and versatile embedded box PC in a rugged design with fanless passive cooling, combining an efficient and powerful Intel Celeron J1900 processor with a rich set of interfaces such as Serial COM, USB, GPIO and Dual LAN. Using an Intel Celeron J1900 Quad Core CPU with up to 8 GB of expandable DDR3L Low Energy RAM, the MERA-2000 represents a scalable embedded box PC for industrial, commercial or technical use. Despite a compact design with fanless cooling, the user has numerous internal interfaces for individual expansions at his disposal, through which the Embedded Box PC can be individualized by two Full Size Mini PCIe Cards as well as an M.2 Extension. For network integration, the MERA-2000 offers Dual LAN with Gigabit Ethernet, two slots for SIM cards as well as optional Bluetooth and WiFi 802.11. Other interfaces include two Serial COM RS232/422/485 ports, five USB ports and an 8-bit GPIO. In addition to a 2.5'' drive bay, the Embedded Box PC supports further drives via mSATA as well as CFast socket. Possible application scenarios include technical monitoring, automation within buildings and in Industry 4.0 or modern IoT applications.
MERA-2000
MERA-2000 Embedded Box PC with Intel Celeron J1900, up to 8 GB DDR3L RAM, Fanless Rugged Design, Dual LAN, 2xCOM, 5xUSB The MERA-2000 is a compact and versatile embedded box PC in a rugged design with fanless passive cooling, combining an efficient and powerful Intel Celeron J1900 processor with a rich set of interfaces such as Serial COM, USB, GPIO and Dual LAN. Using an Intel Celeron J1900 Quad Core CPU with up to 8 GB of expandable DDR3L Low Energy RAM, the MERA-2000 represents a scalable embedded box PC for industrial, commercial or technical use. Despite a compact design with fanless cooling, the user has numerous internal interfaces for individual expansions at his disposal, through which the Embedded Box PC can be individualized by two Full Size Mini PCIe Cards as well as an M.2 Extension. For network integration, the MERA-2000 offers Dual LAN with Gigabit Ethernet, two slots for SIM cards as well as optional Bluetooth and WiFi 802.11. Other interfaces include two Serial COM RS232/422/485 ports, five USB ports and an 8-bit GPIO. In addition to a 2.5'' drive bay, the Embedded Box PC supports further drives via mSATA as well as CFast socket. Possible application scenarios include technical monitoring, automation within buildings and in Industry 4.0 or modern IoT applications.
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Built-in, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
1
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
3
M.2
1
Mini-PCIe/Mini Card
2
SIM Card slots
2
Connectors
Connectors
2xDB9, DVI-D, 2xRJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, Display Port, DIO (terminal block), 4xUSB (4-pin)
System Power Input
Input Voltage DC
9..48 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
168 mm
Height
135 mm
Depth
47 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5 Grms, 5-500 Hz, 3 Axis
Shock
50 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.45 kg
Gross Weight
2.1 kg
