MERA-2000-2L
Arestech
SKU: 57304200

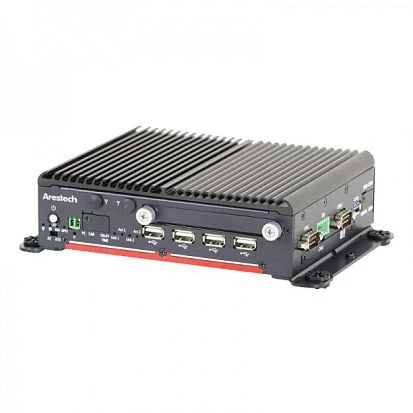

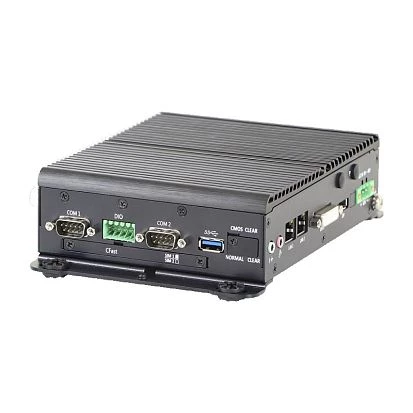

*Stock 4pcs* Rugged Box PC, Intel Celeron J1900 CPU, Up to 8GB DDR3L SO-DIMM, DVI-D, DP, 5xUSB, 2xCOM, isolated GPIO, 2xGbE, 1x2.5" SATA, 1xCFast/mSATA/Mini-PCIe, 1xMini-PCIe, 2xSIM, 6xAntenna holes, Audio, CMOS Battery, 9..48VDC, -40..70C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
1
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, DVI-I, 5xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
9..48 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
168 mm
Height
47 mm
Depth
135 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.45 kg
Gross Weight
2.1 kg
