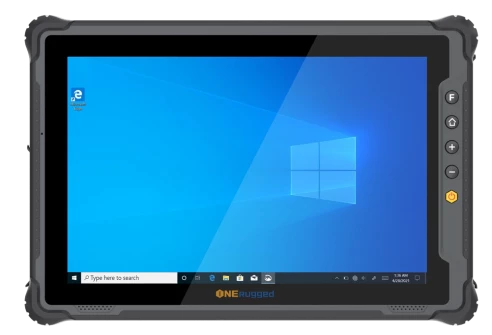

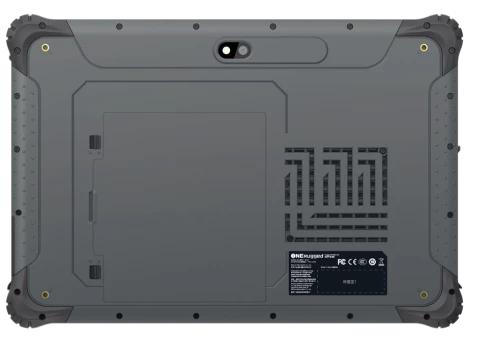

M10J-M
ONERugged
SKU: 57777900
10.1" Rugged IP65 Tablet PC,Intel Celeron N5100,1280x800 or 1920x1200, 700 nits, 8GB LDDR4, 128GB eMMC, USB3.0, USB-C, Mini-HDMI, Optional: LAN/COM/USB, NFC, LTE/GPS WiFi(2.4/5G)/BT5.0, 8.0/5.0 MP Cam, 5000mAh, Win 11 or Win 10 Pro/IoT
Price on request
Available on order
Available on order
Construction
Construction Chassis
Rubber, Aluminium Chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD IPS
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
700 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Jasper Lake
Processor Installed
Intel Celeron N5100
CPU Support Type
Celeron
Max CPU frequency
2.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
HDMI
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
Yes, 1, Micro-SIM
Additional Functions
Camera Frontside
5 MP
Rear Camera
8 MP
GPS
Optional
NFC
Optional
Sensors
G-sensor
Antenna characteristics
Cellular interfaces
4G
Bluetooth
v5.0
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
MicroSD card slot, Mini HDMI, Jack 3.5, USB type A, Micro-SIM card slot, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-ion
Battery Capacity
5000 mA*h
RunTime Battery 1
5 h
Battery 1 Hotswap
No
Software
Operating System Compatibility
Windows IoT Enterprise 10, Windows 10
Operating System Installed
Windows 11
Dimensions and weight
Width
274.9 mm
Height
188.7 mm
Depth
22.2 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
5-95%
Temperature (Storage)
-30~+70
Standards and Certifications
MIL-STD-810
MIL-STD-810G Test Method 516.4 Drop 120 cm
Dimensions
Net Weight
1.1 kg
Gross Weight
1.4 kg
