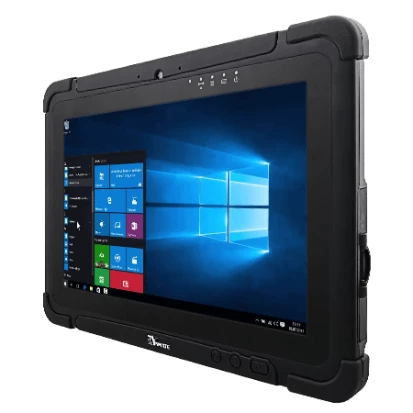

M101EK

M101EK

Winmate
SKU: 57618200
10.1" Rugged Tablet PC, IP65, 1920x1200, 800cd/m2, OB/AG, PCAP Touch, Intel Pentium N6415 3.0GHz CPU, 8GB RAM, 128GB SSD, USB-A + USB-C PD Alt., Wi-Fi/BT/GPS, RFID, 2/8MP F/R Cam, SIM, Audio, MicroSD, 19VDC-in with PSU, 5900mAh Hot-Swap, Win 11 IoT
Price on request
Available
Available

Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD IPS
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
800 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
Micro HDMI
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
MicroSD
1
Storage Cage
Number Of Cage External
1
Installed drive
Drive Type
SSD
1st Storage Capacity
128 GB
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED, SSD LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
1xUSB, MicroSD card slot, Micro-SIM card slot, USB type C
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
5900 mA*h
RunTime Battery 1
8 h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
271.9 mm
Height
197.3 mm
Depth
19.5 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Vibration
MIL-STD-810H Method 516.8 Procedure I
Shock
MIL-STD-810H Method 514.8 Procedure I
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
1.2 kg
Gross Weight
1.95 kg
