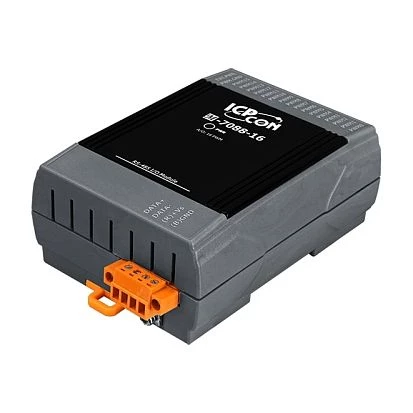

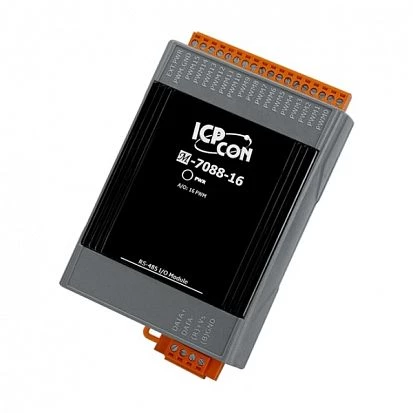

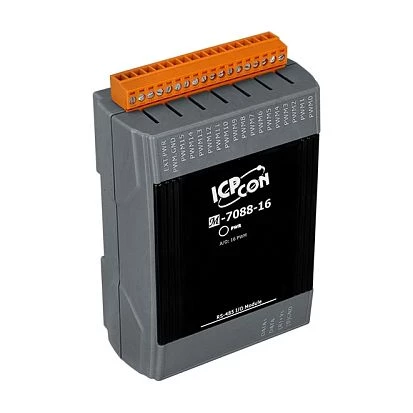

M-7088-16-G

M-7088-16-G

ICP DAS
SKU: 09411100
16-channel 5-50VDC PWM Output Module using the DCON and Modbus Protocols (Gray Cover) (RoHS), 10-48VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Output
Channels
16
Signal Type
PWM: Source
Output frequency range
1~500000 Hz
Output Voltage
5 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..48 V
Dimensions and weight
Width
76 mm
Depth
42 mm
Height
121 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
