M-7068D

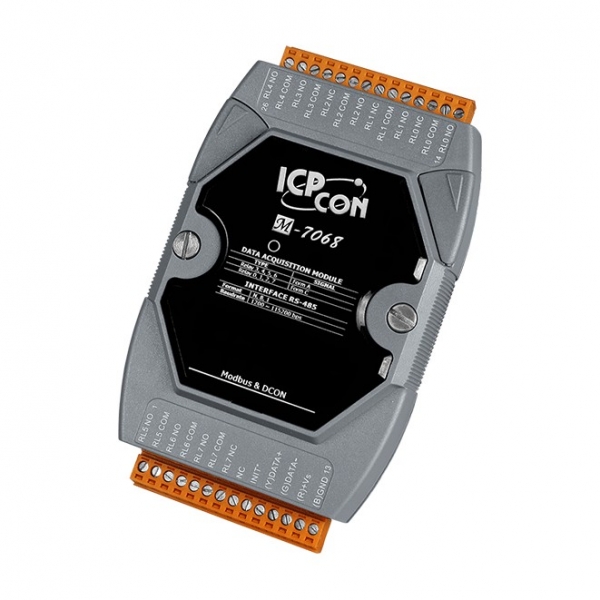

M-7068D

ICP DAS
SKU: 06273800
8 Channels Relay Output Module w/LED Display, Modbus
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Display
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Output
Total channels of digital output
8
Type
Signal Relay
Relay (Form A)
4
Contact rating of relay (Form A)
2A@30V DC, 0.24A@220V DC, 0.25A@250V AC
Relay (Form C)
4
Contact rating of relay (Form C)
2A@30V DC, 0.24A@220V DC, 0.25A@250V AC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
