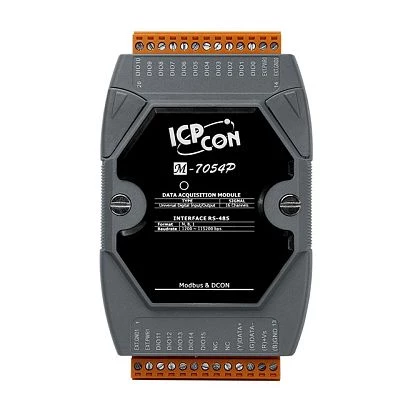

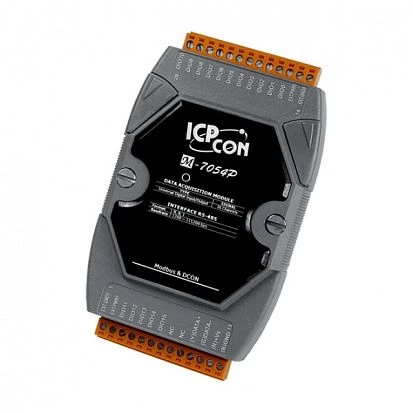

M-7054P

M-7054P

ICP DAS
SKU: 07221900
16-channel Isolated Universal Digital Input/Output Module using the DCON and Modbus Protocols (Gray Cover) (RoHS) with High Load Current Output
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
16
Type
Dry contact
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
5~50 V
Max. load current
500 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
