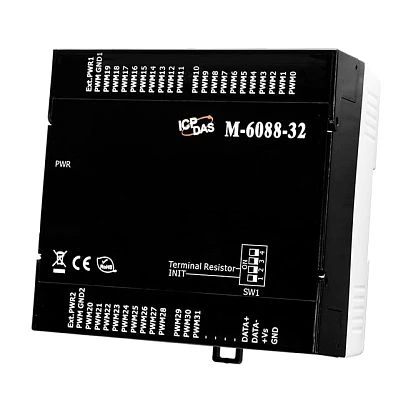

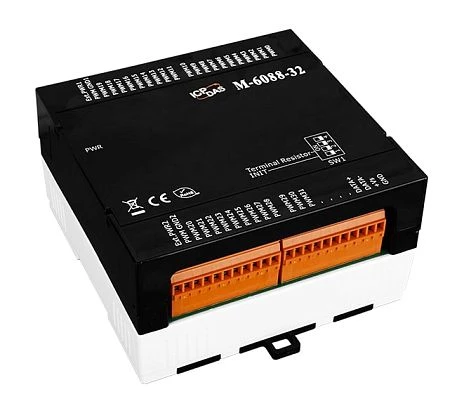

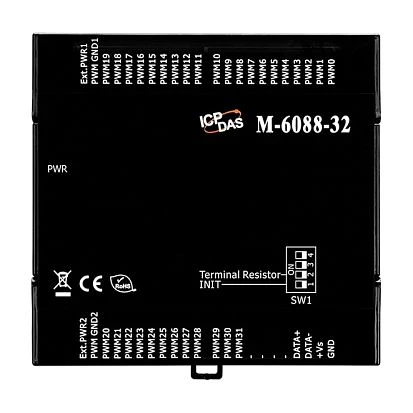

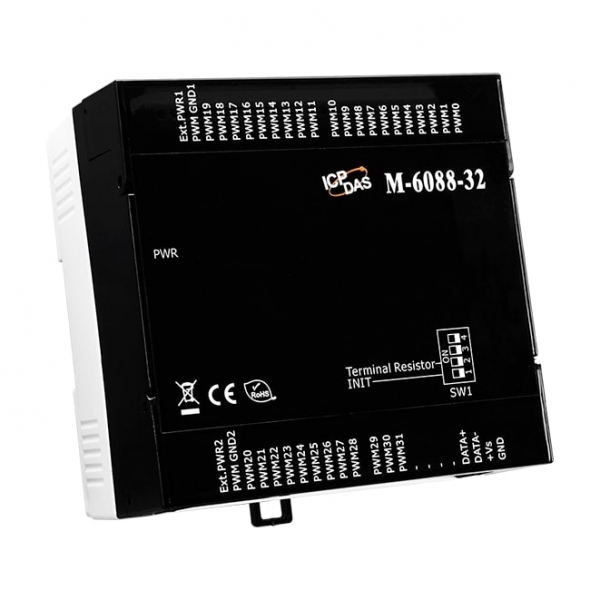

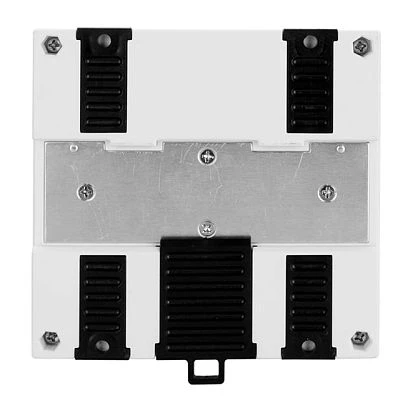

M-6088-32

M-6088-32

ICP DAS
SKU: 09592400
32-channel PWM Output Module using the DCON and Modbus Protocols (RoHS), 5-40VDC
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Output
Channels
16
Signal Type
PWM: Source
Output frequency range
0~50 Hz
Output Voltage
40 V
System Power Input
Input Voltage DC
10..48 V
Dimensions and weight
Width
120 mm
Depth
116 mm
Height
64 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.5 kg
