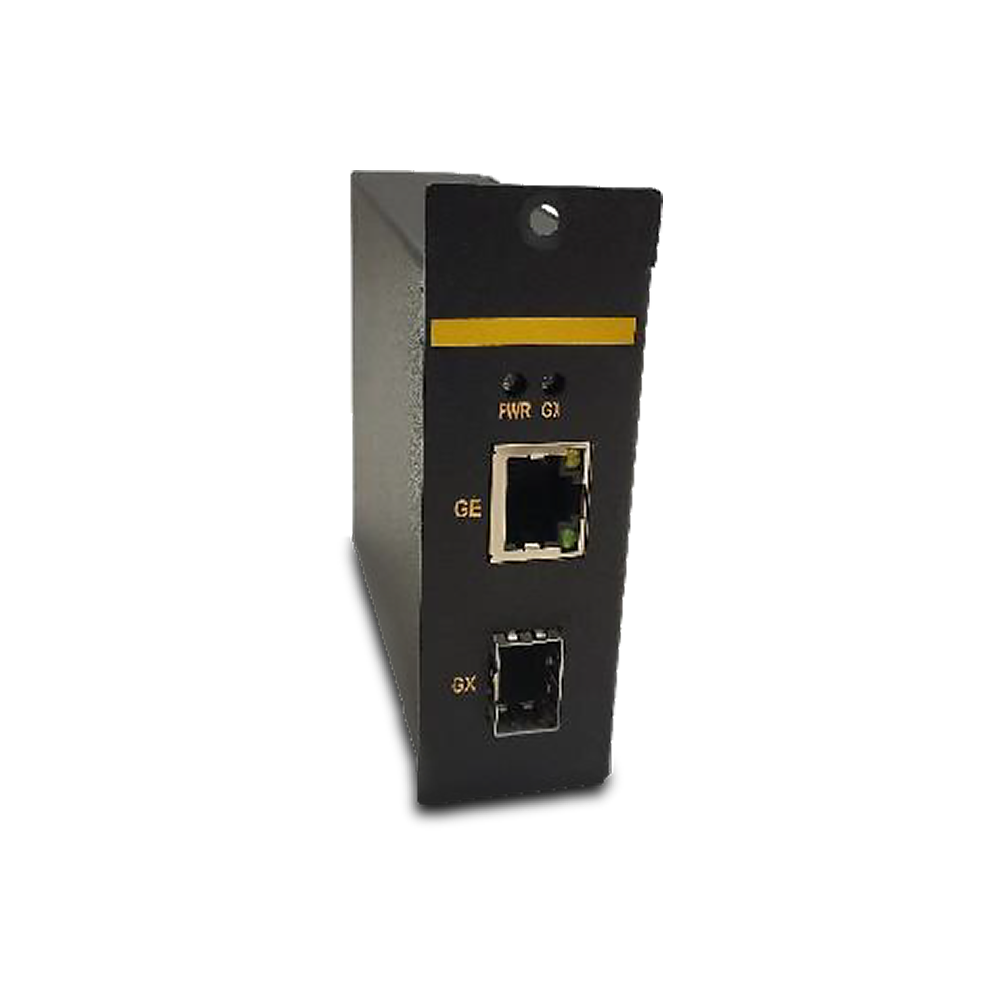

KOM600H-1GX1GE-12VDC
Kyland
SKU: 11236200
2-port Ethernet to optical media converter (mounting in KOM-RH, KOM-DH chassis), 1x1000Base-X SFP ports, 1x10/100/1000Base-T(X) RJ45, 12VDC, -10...+60C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
SFP 1000 Mbit Ports
1
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
9 kB
Supported Protocols
IEEE Standard
ieee_802.3i, ieee_802.3u, ieee_802.3ab, ieee_802.3z
System Power Input
Input Voltage DC
12..12 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded
Protection Level of Chassis
IP40
Dimensions and weight
Width
28.8 mm
Depth
98 mm
Height
75.7 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC CFR47 Part 15, EN55022/CISPR22, Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.44 kg
Gross Weight
0.8 kg
