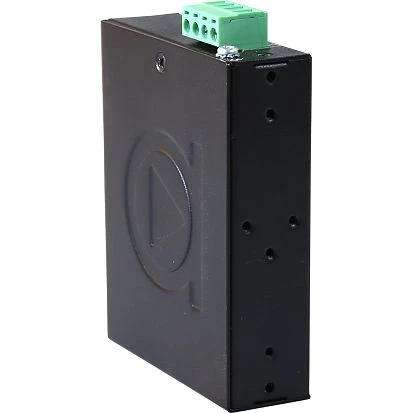

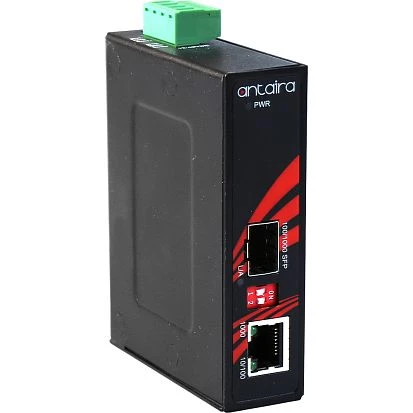

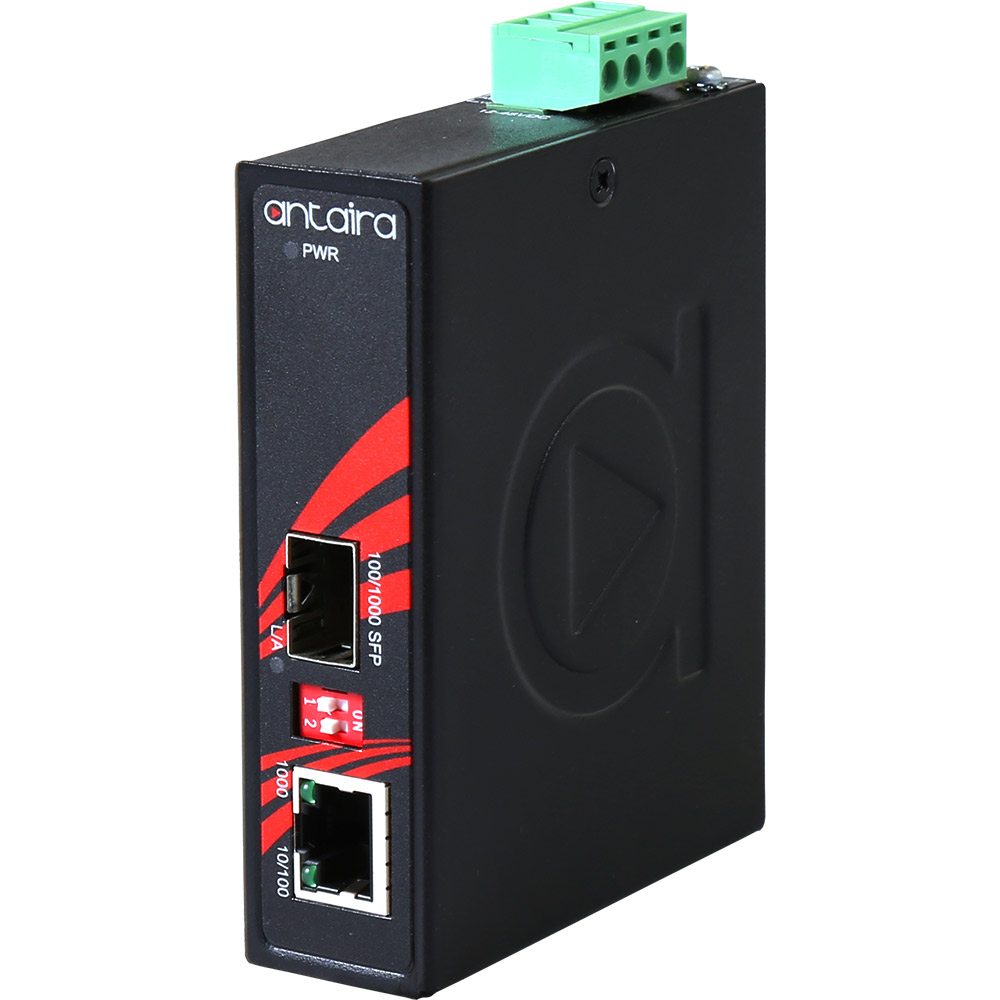

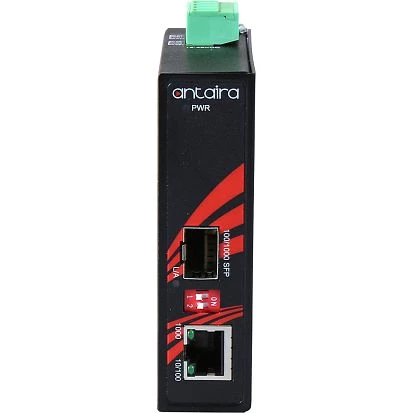

IMC-C1000-SFP
Antaira Technologies
SKU: 80179400
Compact Industrial Gigabit Media Converter, IP30, 1x10/100/1000Base-TX, 1x100/1000 SFP, 12..48 VDC, Operating Temperature -10..70 C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
1
SFP 100/1000 Mbit Ports
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
10 kB
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
26 mm
Depth
95 mm
Height
75 mm
Standards and Certifications
Certifications
CE, FCC Class A, FCC
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Freefall
IEC 60068-2-32
Safety
UL 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
