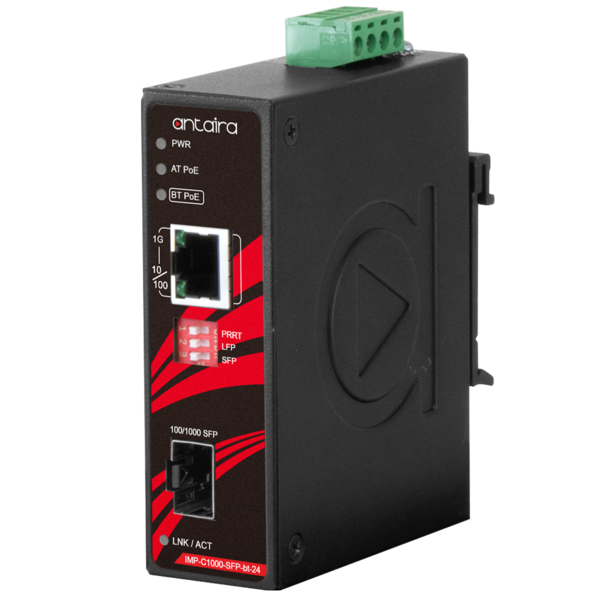

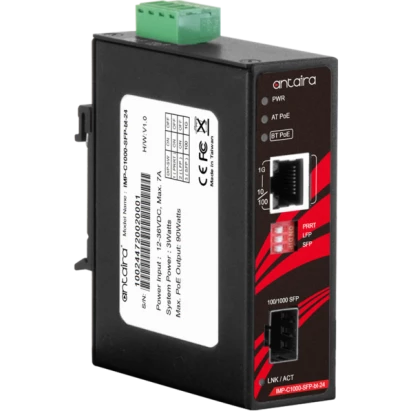

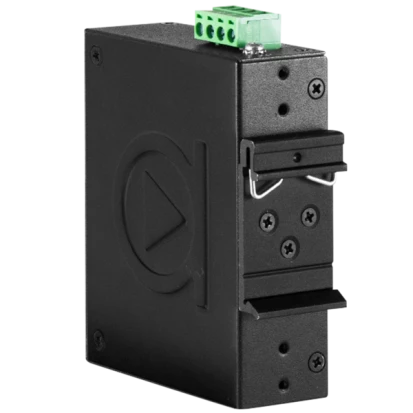

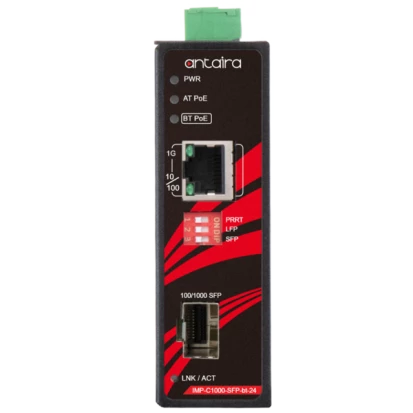

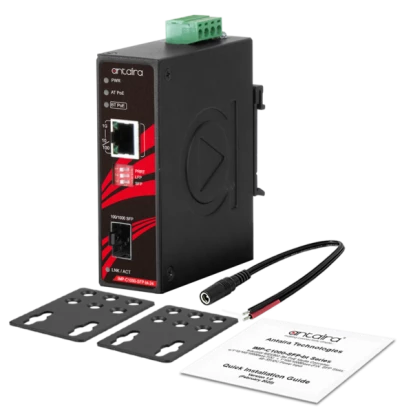

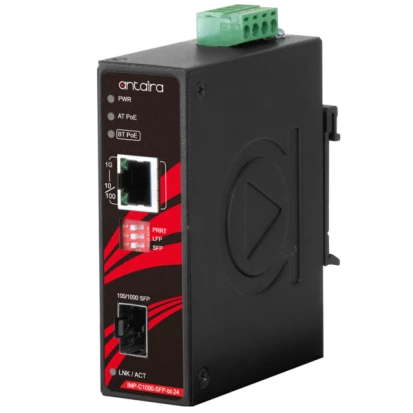

IMP-C1000-SFP-bt-24
Antaira Technologies
SKU: 80315300
Compact Industrial Gigabit Media Converter, IP30, 1x10/100/1000Base-TX with PoE, 1x100/1000 SFP, 12..55 VDC, Operating Temperature -10..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
PoE 10/100/1000 Mbit/s
1
SFP 100/1000 Mbit/s Ports
1
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X), IEEE 802.3bt for Power over Ethernet
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
10 kB
System Power Input
Input Voltage DC
12..55 V
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
95 mm
Height
75 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55032, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 55035
Freefall
IEC 60068-2-32
Safety
UL 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.34 kg
Gross Weight
0.44 kg
