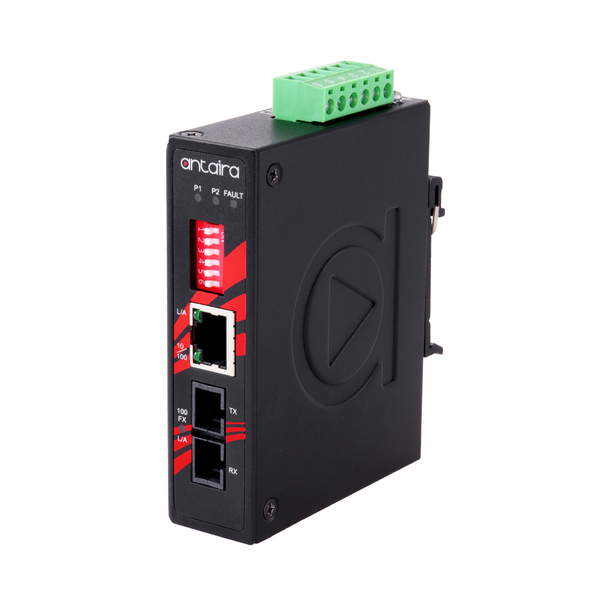

IMC-C100-M-T
Antaira Technologies
SKU: 80314000
Compact Industrial Media Converter, IP30, 1x10/100Base-TX, 1x100Base-FX, Multi-Mode 2KM, SC Connector, 12..48 VDC, Operating Temperature -40..80 C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
multi-mode
Transmission Range
2 km
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..80 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
26 mm
Depth
95 mm
Height
75 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55032, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 61000-6-2
Freefall
IEC 60068-2-32
Safety
UL 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.3 kg
Gross Weight
0.4 kg
