iROBO-SR223-RV6
Industrial Personal Computer 2U GmbH
SKU: 56785600

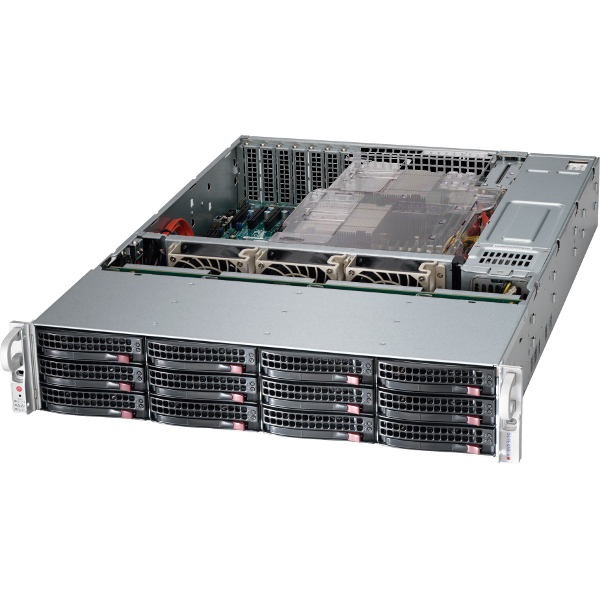

2U Rackmount Server, with 2x Intel Xeon Scalable LGA3647, Intel C621 Chipset,Up to 1.5TB 3DS ECC DDR4 RAM, VGA, 12xSATA 3, 3xLAN, 4xUSB 3.0, 2xSuperDOM, Slim DVD-ROM, 6xPCIe x8, 1xPCIe x16, 1xPCIe x4, 1000W redundant PSU
End-of-life product
Construction
Mounting Configuration
Desktop, 19" Rackmount
Height
2 U
CPU
Socket
LGA 3647-P0
CPU Support Type
Xeon
Chipset
Chipset
Intel C621
Memory
Form-factor
DDR4
Socket Type
12xDIMM
ECC
Yes
Maximum Memory
1512 GB
Ethernet
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
USB Total
4
USB v3.x
4
Drive interfaces
RAID Levels
1, 5, 10
Storage Cage
3.5" Cage Intenal
2
3.5" Cage External
8
Extension Slots
PCI Express x16
1
PCI Express x8
6
M.2
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, 3xRJ45 Ethernet, 4xUSB
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
89 mm
Height
437 mm
Depth
647 mm
Operating Conditions
Operating Temperature
10..35 °C
Standards and Certifications
Certifications
FCC Class A
Dimensions
Gross Weight
27 kg
