iROBO-MRB3110-3L4L
Industrial Personal Computer 2U GmbH
SKU: 57257300
Rugged Box PC, supports 9th/8th Gen Intel Core i3/5/7 CPU, up to 64GB DDR4 RAM, VGA/ DVI-D/DP, 8xUSB, 6xCOM, 8-bit DIO, 7xGbit LAN, Audio, 4x2.5" SATA (RAID 0,1,5,10), 2xCFast/mSATA, 4xSIM, DC-in 9..48V, -40..70C
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Core i7, Pentium
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM, Intel i350-AM4
Total Ethernet
6
10/100/1000 Mbit/s
7
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
Channels of DIO
16
Industrial Interfaces
CAN Port
2
Drive interfaces
CFast Slots
1
Extension Slots
Mini-PCIe/Mini Card
4
SIM Card slots
4
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

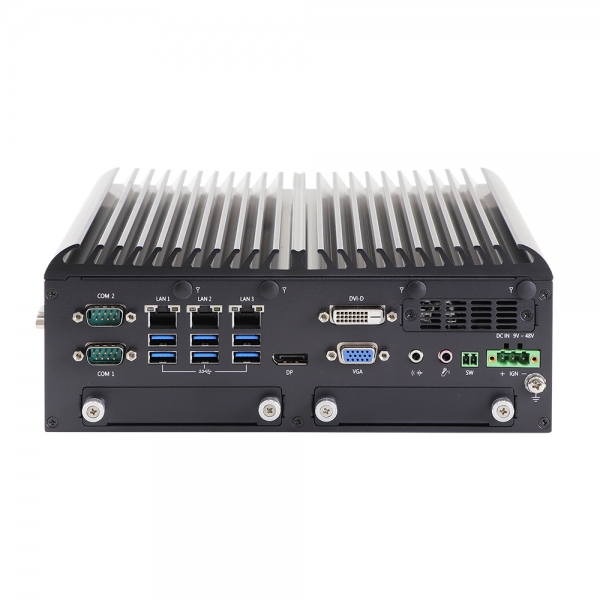

6xDB9, DVI-D, DB15 VGA, 8xUSB, Mic In, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..48 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
230 mm
Height
92.6 mm
Depth
241.5 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
HDD: 1Grms @ 5~500 Hz, 0.5 hr/axis, mSATA/SS: 5Grms @ 5~500 Hz, 0.5 hr/axis
Shock
HDD: 20G, half sine, 11ms, mSATA/SSD: 50G, half sine, 11ms
Dimensions
Net Weight
3.95 kg
Gross Weight
6 kg
