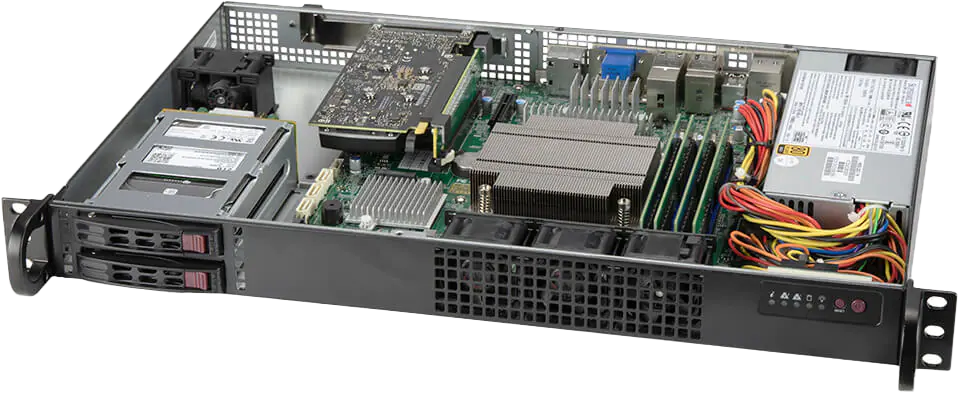

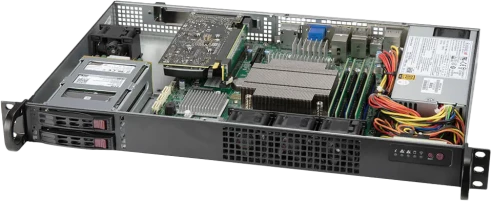

iROBO-SR172C-V10
Industrial Personal Computer 2U GmbH
SKU: 57785900
1U Rackmount Avior Server, Intel i5 10th Gen., 8GB DDR4 RAM (max.128GB), 2x SATA 2.5" Bays, 1xM.2 2280/22110 PCIe x4, VGA, DP, DVI-D, 2x 2.5G LAN, 2x10G LAN, IPMI, 1xPCI-E 3.0 x16 HH/HL Slot, 200W PSU Gold
End-of-life product
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
1 U
Type
Fans
CPU
СPU Generation/Family
Comet Lake
Socket
LGA1200
Chipset
Chipset
Intel W480E
Memory
Socket Type
4xDIMM
ECC
Yes
Default on Board Memory
8 GB
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
DVI-D, VGA, 2xDisplayPort
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM, Intel X550-AT2
Total Ethernet
5
10/100/1000 Mbit/s
2
10 Gbit/s
2
Interfaces
COM Total
1
RS-232
1
USB Total
12
USB 2.0
6
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
RAID Levels
1
Storage Cage
2.5" Cage External
2
Extension Slots
Total
2
PCI Express x16
1
M.2
1
LED / Controls
Controls
On/Off, 1xReset
Connectors
Internal Ports
COM, TPM, 2xUSB 3.0, 6xUSB 2.0
Connectors
DVI-D, DB15 VGA, 4xRJ45 Ethernet, 4xUSB, AC Input, 2xDisplayPort, 1xIPMI
Power Supply
Type of Power Supply
ATX PS/2
Output Power
200 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11
Dimensions and weight
Width
437 mm
Height
43 mm
Depth
287 mm
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
14 kg
