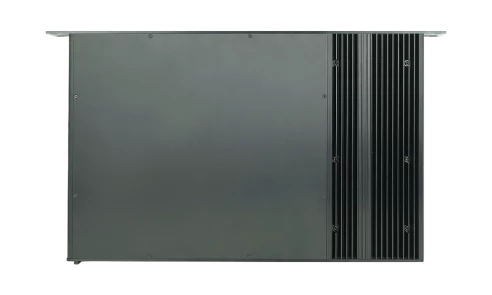

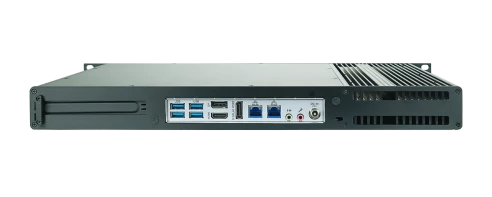

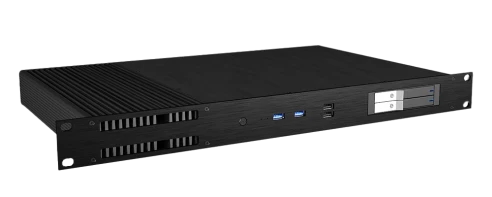

iROBO-17104-49A1
Industrial Personal Computer 2U GmbH
SKU: 57730600
1U Rack Industrial PC, Intel 6-Core i5 12/13th Gen, Intel Q670E Chipset, 8GB DDR4 RAM (max.64GB), 256GB M.2 NVMe SSD, HDMI/2xDP, 2x2.5Gbit LAN, 4xUSB3.2 Gen2, 2xUSB 2.0, 2xUSB3.2 Gen1, Optional: 2xCOM, 12-28VDC-in
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
1 U
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
LVDS, HDMI, 2xDisplayPort, eDP
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB 2.0
2
USB v3.x
6
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
2
RAID Levels
1
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
5
PCI Express x16
1
M.2
4
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B
LED / Controls
Controls
On/Off, 1xReset
Connectors
Internal Ports
4xCOM, 2xUSB 2.0, TPM, GPIO
Connectors
HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11
Dimensions and weight
Width
482.6 mm
Height
43.6 mm
Depth
278 mm
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
20.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
1 U
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
LVDS, HDMI, 2xDisplayPort, eDP
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB 2.0
2
USB v3.x
6
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
2
RAID Levels
1
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
5
PCI Express x16
1
M.2
4
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B
LED / Controls
Controls
On/Off, 1xReset
Connectors
Internal Ports
4xCOM, 2xUSB 2.0, TPM, GPIO
Connectors
HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11
Dimensions and weight
Width
482.6 mm
Height
43.6 mm
Depth
278 mm
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
20.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
1 U
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
LVDS, HDMI, 2xDisplayPort, eDP
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB 2.0
2
USB v3.x
6
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
2
RAID Levels
1
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
5
PCI Express x16
1
M.2
4
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B
LED / Controls
Controls
On/Off, 1xReset
Connectors
Internal Ports
4xCOM, 2xUSB 2.0, TPM, GPIO
Connectors
HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11
Dimensions and weight
Width
482.6 mm
Height
43.6 mm
Depth
278 mm
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
20.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
1 U
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
LVDS, HDMI, 2xDisplayPort, eDP
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB 2.0
2
USB v3.x
6
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
2
RAID Levels
1
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
5
PCI Express x16
1
M.2
4
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B
LED / Controls
Controls
On/Off, 1xReset
Connectors
Internal Ports
4xCOM, 2xUSB 2.0, TPM, GPIO
Connectors
HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11
Dimensions and weight
Width
482.6 mm
Height
43.6 mm
Depth
278 mm
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
20.5 kg
