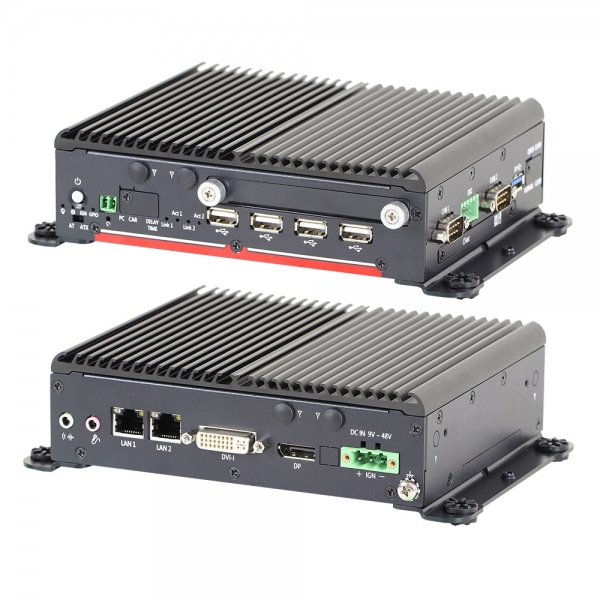

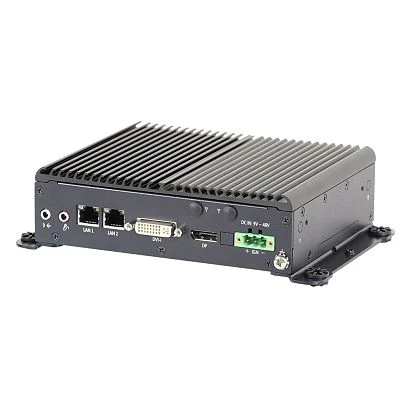

iROBO-MRB2000
Industrial Personal Computer 2U GmbH
SKU: 57264500
Rugged Box PC, Intel Celeron J1900 CPU, Up to 8GB DDR3L SO-DIMM, DVI-D, DP, 5xUSB, 2xCOM, isolated GPIO, 2xGbE, 1x2.5" SATA, 1xCFast/mSATA/Mini-PCIe, 1xMini-PCIe, 2xSIM, 6x Antenna holes, Audio, CMOS Battery, 9..48VDC, -40..70C
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
CFast Slots
1
Extension Slots
Mini-PCIe/Mini Card
2
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI-I, 2xRJ45 Ethernet, 5xUSB, Mic In, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..48 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10

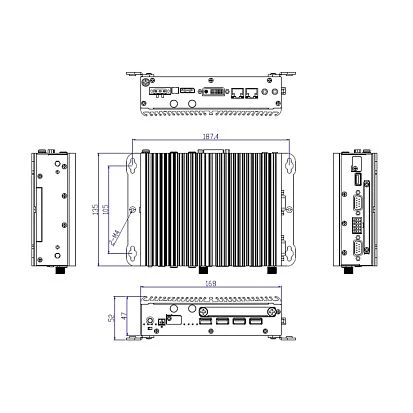

Dimensions and weight
Width
168 mm
Height
76 mm
Depth
135 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
HDD: 1Grms @ 5~500 Hz, 0.5 hr/axis, mSATA/SS: 5Grms @ 5~500 Hz, 0.5 hr/axis
Shock
HDD: 20G, half sine, 11ms, mSATA/SSD: 50G, half sine, 11ms
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
CFast Slots
1
Extension Slots
Mini-PCIe/Mini Card
2
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI-I, 2xRJ45 Ethernet, 5xUSB, Mic In, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..48 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
168 mm
Height
76 mm
Depth
135 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
HDD: 1Grms @ 5~500 Hz, 0.5 hr/axis, mSATA/SS: 5Grms @ 5~500 Hz, 0.5 hr/axis
Shock
HDD: 20G, half sine, 11ms, mSATA/SSD: 50G, half sine, 11ms
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
CFast Slots
1
Extension Slots
Mini-PCIe/Mini Card
2
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI-I, 2xRJ45 Ethernet, 5xUSB, Mic In, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..48 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
168 mm
Height
76 mm
Depth
135 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
HDD: 1Grms @ 5~500 Hz, 0.5 hr/axis, mSATA/SS: 5Grms @ 5~500 Hz, 0.5 hr/axis
Shock
HDD: 20G, half sine, 11ms, mSATA/SSD: 50G, half sine, 11ms
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
CFast Slots
1
Extension Slots
Mini-PCIe/Mini Card
2
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI-I, 2xRJ45 Ethernet, 5xUSB, Mic In, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..48 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
168 mm
Height
76 mm
Depth
135 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
HDD: 1Grms @ 5~500 Hz, 0.5 hr/axis, mSATA/SS: 5Grms @ 5~500 Hz, 0.5 hr/axis
Shock
HDD: 20G, half sine, 11ms, mSATA/SSD: 50G, half sine, 11ms
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
