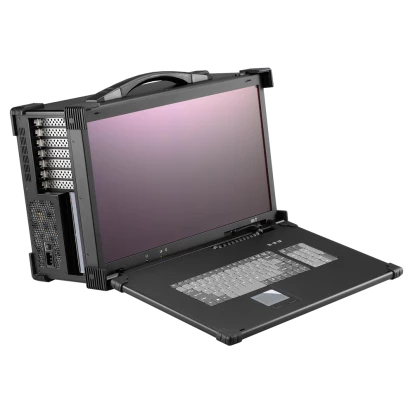

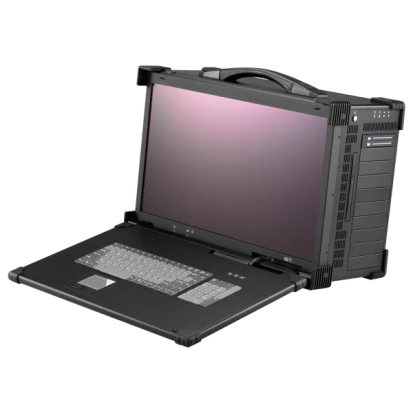

iROBO-ARP690-FHD-A7M81
Industrial Personal Computer 2U GmbH
SKU: 56900700
Industrie Portable Workstation, 21.5" 1920x1080 TFT LCD, Intel Core i5-8500 3.5 GHz, Intel C246 Chipset, 8GB DDR4 RAM (max.64GB), 128GB SSD, 2xGbit LAN, 1xCOM, 8xUSB, M.2 2230,1xPCIe x16, 1xPCIe x4, 3xPCIe x1, 2xPCI, PS2 650W PSU
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Portable
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel C246
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
1
USB Total
8
USB 2.0
4
LPT
LPT
Audio
Audio Controller
Realtek ALC671
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
6
5.25" Cage External
6
Extension Slots
Total
7
PCI Express x16
2
PCI Express x8
2
PCI Express x4
1
PCI Express x1
1
PCI
2
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
PS/2 Mouse, PS/2 Keyboard, 2xRJ45, 8xUSB, Audio (in/out/Mic), DB9 Male
Power Supply
Type of Power Supply
ATX PS/2
Output Power
650 W
Input Voltage AC
100..240 V
Dimensions and weight
Width
524 mm
Height
372 mm
Depth
226 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
15 kg
Gross Weight
26 kg
