Name: iROBO-SR107-V5
Brand: Industrial Personal Computer 2U GmbH
SKU: 56136800
Price: 1087 EUR
Availability: Discontinued

Home

Catalog

Industrial Computers

Embedded Edge PC, Industrial Box / Mini-PC

Product Archive for PC

iROBO-SR107-V5

Industrial Personal Computer 2U GmbH

SKU: 56136800

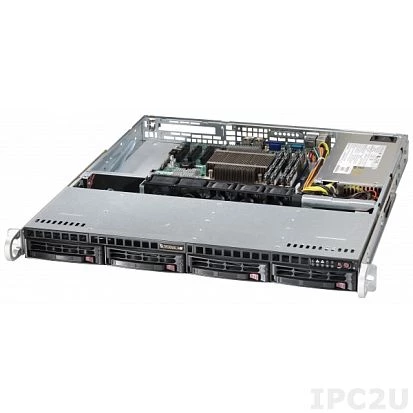

1U mini Rackmount Server, Intel Quad Core i7-6700 3.4GHz CPU, 8GB DDR4 1600MHz, max 4TB SATA3, 2xGiga Lan, PCI-E 3.0x16 FH, Slim DVD+RW/-RW, FL slot, 350W

End-of-life product

Construction

Mounting Configuration

19" Rackmount

Type

Fans

CPU

Processor Installed

Intel Core i7

Socket

LGA1151

Max CPU frequency

3.4 GHz

Chipset

Intel Q170

Memory

Form-factor

DDR4

Default on Board Memory

8 GB

Maximum Memory

32 GB

Graphic

Graphic Controller

AST2300

Ethernet

10/100/1000 Mbit/s

Interfaces

USB Total

USB 2.0

USB v3.x

Audio

Audio Controller

Realtek ALC888 HD

Storage Cage

3.5" Cage External

Extension Slots

PCI Express x16

LED / Controls

LED

1xHDD LED, 2xLED temp, 1xOn/Off LED, 10/100/1000M LED

Power Supply

Output Power

350 W

Input Voltage AC

100..240 V

Dimensions and weight

Width

43 mm

Height

437 mm

Depth

594 mm

Operating Conditions

Operating Temperature

10..35 °C

Dimensions

Gross Weight

14 kg
