iROBO-PEP101-PD
Industrial Personal Computer 2U GmbH
SKU: 57320300

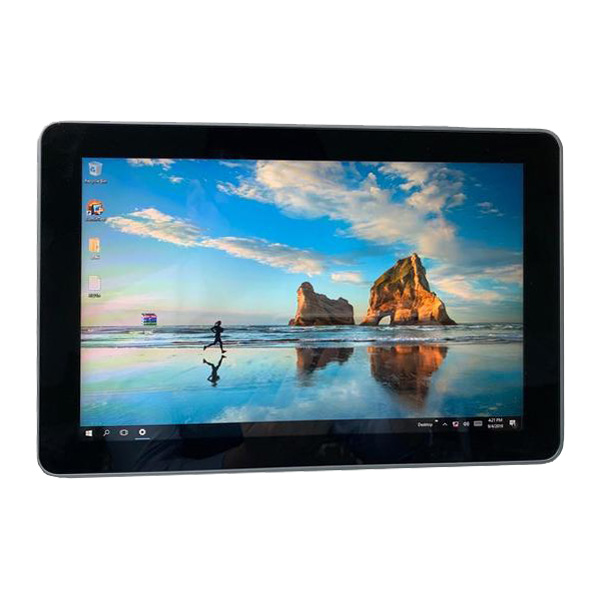

10.1" TFT LCD Fanless Panel PC, 1280x800, 350 cd/m2, IP67 Front, PCAP touch, Intel Celeron J1900 2.0 GHz, up to 8GB DDR3L, 1x VGA, 1xHDMI, 2xUSB 3.0, 2xUSB 2.0, 2xRS232, 1xLAN, 1xLAN PoE PD, 2xMini-PCIe, Line-Out, External Power Adapter Optional
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP67
Type
Fanless
Display
Display Type
LCD TFT
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45, 4xUSB
Software
Operating System Compatibility
Windows 7, Linux OS, Windows 8.1, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
257.2 mm
Height
51 mm
Depth
170.9 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
2 kg
Gross Weight
4 kg
