iROBO-NEC2507WS-A
Industrial Personal Computer 2U GmbH
SKU: 56167400

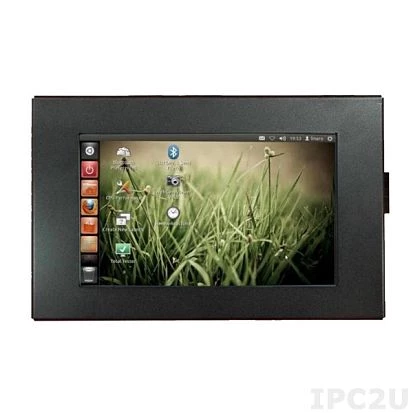

7" Panel PC, 1024x600, Dual Core ARM Cortex-A9 1GHz, 1GB DDR3 RAM, 4GB NAND Flash, HDMI, 1xGbit LAN, microSD Slot, 2xUSB, 1x USB OTG, 8-bit GPIO, 12V DC-In, Power Adapter, Android 4.2
End-of-life product
Construction
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex A9
Max CPU frequency
1 GHz
Ethernet
Total Ethernet
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
USB Total
3
USB 2.0
3
Digital Input-Output
GPIO
Yes
Connectors
Connectors
2xDB9, HDMI, RJ45, 3xUSB, Mic In, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
24 W
Software
Operating System Installed
Android
Dimensions and weight
Width
216 mm
Height
136 mm
Depth
49 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
1 kg
Gross Weight
2.5 kg
