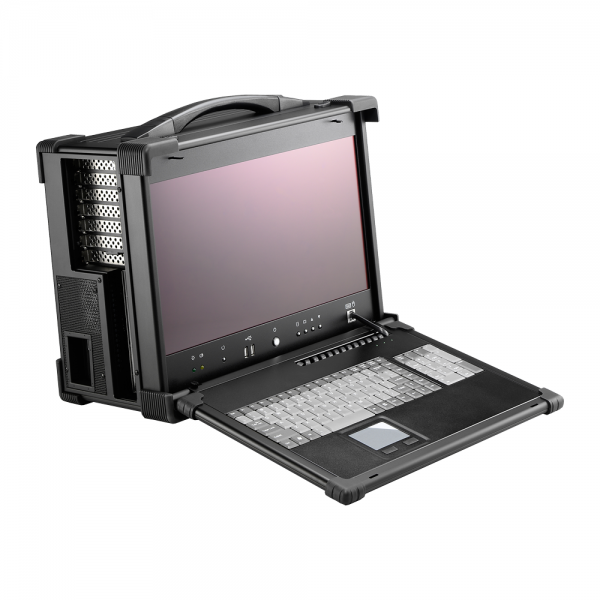

iROBO-ARP670-FHD-B7M81
Industrial Personal Computer 2U GmbH
SKU: 56959700
Industrie Portable Workstation, 17.3" 1920x1080 TFT LCD (DP input), Intel Core i5-8500 3.5 GHz, Intel Q370, 8GB DDR4 RAM (max.64GB), 128GB SSD, 2xGbit LAN, 1xCOM, 8xUSB, M.2 2280, 2 xPCIe x16 (1x16 or 2x8), 1xPCIe x1, 3xPCIe x4, 1xPCI, PS2 650W PSU
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Portable
Display
Display Type
LCD TFT
Diagonal
17.3 "
Maximum resolution
1920x1080 Dots
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888
Drive interfaces
M.2
1
mSATA
1
Storage Cage
Number Of Cage External
3
3.5" Cage External
2
5.25" Cage External
1
Extension Slots
Total
7
PCI Express x16
2
PCI Express x8
2
PCI Express x4
3
PCI Express x1
1
PCI
1
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
PS/2 Keyboard/Mouse, 2xRJ45, 8xUSB, Mic In, Line Out, DB9 Male
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
ATX PS/2
Output Power
650 W
Input Voltage AC
100..240 V
Dimensions and weight
Width
434 mm
Height
374 mm
Depth
230 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Gross Weight
20.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Portable
Display
Display Type
LCD TFT
Diagonal
17.3 "
Maximum resolution
1920x1080 Dots
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888
Drive interfaces
M.2
1
mSATA
1
Storage Cage
Number Of Cage External
3
3.5" Cage External
2
5.25" Cage External
1
Extension Slots
Total
7
PCI Express x16
2
PCI Express x8
2
PCI Express x4
3
PCI Express x1
1
PCI
1
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
PS/2 Keyboard/Mouse, 2xRJ45, 8xUSB, Mic In, Line Out, DB9 Male
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
ATX PS/2
Output Power
650 W
Input Voltage AC
100..240 V
Dimensions and weight
Width
434 mm
Height
374 mm
Depth
230 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Gross Weight
20.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Portable
Display
Display Type
LCD TFT
Diagonal
17.3 "
Maximum resolution
1920x1080 Dots
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888
Drive interfaces
M.2
1
mSATA
1
Storage Cage
Number Of Cage External
3
3.5" Cage External
2
5.25" Cage External
1
Extension Slots
Total
7
PCI Express x16
2
PCI Express x8
2
PCI Express x4
3
PCI Express x1
1
PCI
1
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
PS/2 Keyboard/Mouse, 2xRJ45, 8xUSB, Mic In, Line Out, DB9 Male
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
ATX PS/2
Output Power
650 W
Input Voltage AC
100..240 V
Dimensions and weight
Width
434 mm
Height
374 mm
Depth
230 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Gross Weight
20.5 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Portable
Display
Display Type
LCD TFT
Diagonal
17.3 "
Maximum resolution
1920x1080 Dots
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
4xDIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888
Drive interfaces
M.2
1
mSATA
1
Storage Cage
Number Of Cage External
3
3.5" Cage External
2
5.25" Cage External
1
Extension Slots
Total
7
PCI Express x16
2
PCI Express x8
2
PCI Express x4
3
PCI Express x1
1
PCI
1
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
PS/2 Keyboard/Mouse, 2xRJ45, 8xUSB, Mic In, Line Out, DB9 Male
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
ATX PS/2
Output Power
650 W
Input Voltage AC
100..240 V
Dimensions and weight
Width
434 mm
Height
374 mm
Depth
230 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Gross Weight
20.5 kg
