iROBO-1000D-10i2f
Industrial Personal Computer 2U GmbH
SKU: 56859100

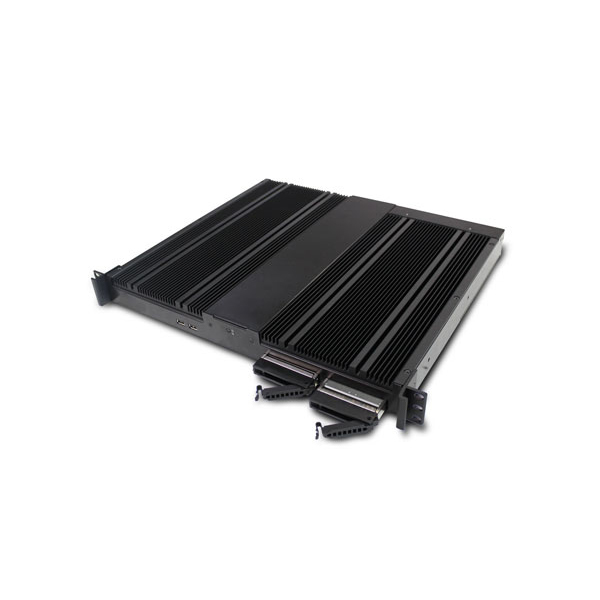

19" 1HE Industrie Fanless Computer, Intel Core i5-6500TE 6th Gen. CPU, Intel Q170 Chipset, 4GB DDR3L RAM (max.32GB), 128GB SSD, VGA, HDMI, DP, 2xGbit LAN, 4xUSB, 2xCOM, 19..24V DC-In
End-of-life product
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
1 U
Type
Fanless
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i5-6500TE
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Max CPU frequency
3.3 GHz
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC662
Drive interfaces
RAID Levels
1
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Installed drive
Drive Type
SSD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
2
PCI Express x16
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Audio, Display Port, DC input (terminal block)
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Input Voltage DC
19..24 V
Software
Operating System Compatibility
Windows 7, Windows 8, Windows 10
Dimensions and weight
Width
483 mm
Height
44 mm
Depth
397 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
0.25G (peak-peak), 5…15GHz; 2.5G (peak-peak), 15…500GHz
Shock
10G (11ms)
Available until
Q1 2025
Standards and Certifications
Certifications
EAC
Dimensions
Gross Weight
12 kg
