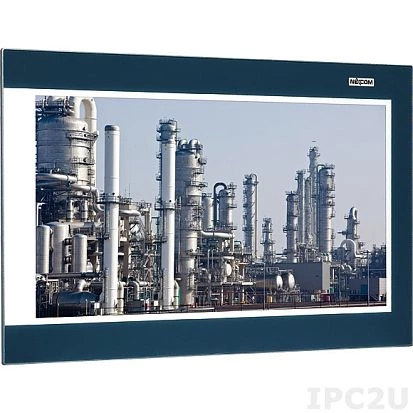

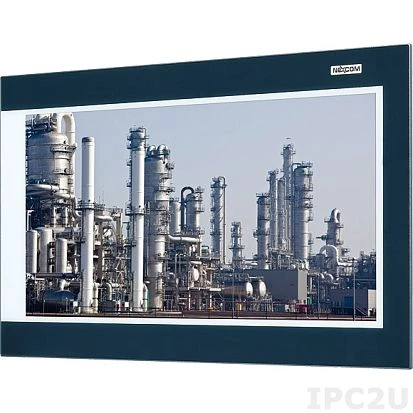

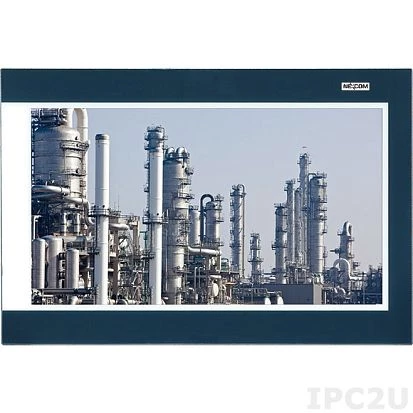

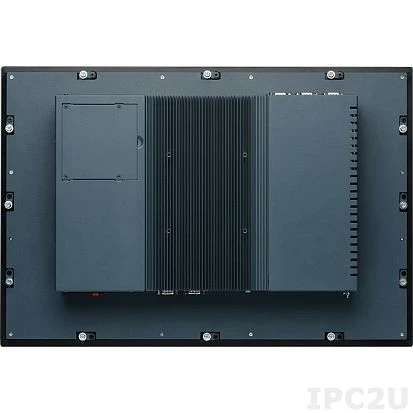

IPPC-2160PP2E-AC

NEXCOM
SKU: 55792100
21.5" Full HD LED Fanless Panel PC with Intel Core i5-3610ME 2.7GHz CPU, Projected Capacitive Touch, Intel HM76, 4GB DDR3, 2x Hard Drive Bay, CFast, 6xCOM, GPIO, DI/DO, 4xUSB, 2xGbit LAN, 2xMini-PCIe, 1xPCI, 1xPCIe, 100-240V AC Power Input
End-of-life product

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
5000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-3610ME
CPU Support Type
Celeron, Core i7
Max CPU frequency
3.3 GHz
Chipset
Chipset
Intel HM76
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel 82574L 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
4
USB 2.0
4
LPT
LPT
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Audio
Audio Controller
Realtek ALC886-GR
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Installed drive
1st Storage Capacity
64 GB
Extension Slots
Total
4
PCI Express x4
1
Mini-PCIe/Mini Card
2
PCI
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, Control Buttons, AT/ATX Switch
Connectors
Connectors
6xDB9, DB15 VGA, 2xRJ45, 4xUSB, Mic In, Line In, Line Out, AC Input, LPT, DB15 GPIO, 2xPS/2 Keyboard/Mouse, DB9 DIO
System Power Input
Input Voltage AC
100..240 V
Power Consumption
120 W
Dimensions and weight
Width
562.4 mm
Height
382.4 mm
Depth
92.3 mm
Operating Conditions
Operating Temperature
-10..50 °C
Vibration
IEC 68 2-64 (w/ HDD); 1Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating); 2Grms @ sine, 5~500Hz, 1hr/axis (CFast Operating); 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)
Shock
IEC 68 2-27; HDD: 20G @ wall mount, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
12.51 kg
Gross Weight
15 kg
