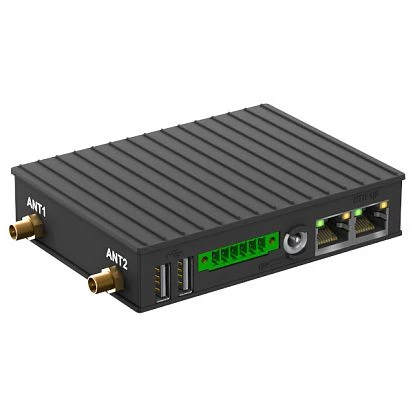

IOT-GATE-iMX8-Series

IOT-GATE-iMX8-Series

Compulab
SKU: 57426900
ARM Based Gateway, NXP i.MX8M Mini + ARM Cortex-M4 CPU, up to 4GB LPDDR4 RAM, up to: 2xLAN, 3xCOM, 3xUSB, DIO, GPIO, SPI, UART, I2C, 2x64GB eMMC, 2xmini-PCIe, WiFi6, BT5.1, LTE, GPS, 8..36V DC, -40..80C Operating temp.
Price on request
Available
Available

System configuration
Price with VAT
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
NXP i.MX8M Mini Quad
Socket
CPU onboard
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR4
Maximum Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
1
PoE 10/100/1000 Mbit/s
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/485
1
USB Total
4
USB 2.0
4
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
GPIO
Yes
Industrial Interfaces
CAN Port
2
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
2nd Storage Capacity
64 GB
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1, Micro-SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
Optional
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xRJ45 Ethernet, 3xUSB, DC Input, SIM Card Slot, GPIO (terminal block), 1xCOM (terminal block), 20-pin I/O Connector, Console Port Micro USB
System Power Input
Input Voltage DC
8 V
Power Consumption
7 W
Dimensions and weight
Width
112 mm
Height
25 mm
Depth
84 mm
Operating Conditions
Operating Temperature
0..60 °C
MTBF
200000 h
Standards and Certifications
Certifications
CE/FCC
Safety
EN 62368-1 (LVD), UL 62368-1, IEC 62368-1
Dimensions
Net Weight
0.45 kg
Gross Weight
3 kg
