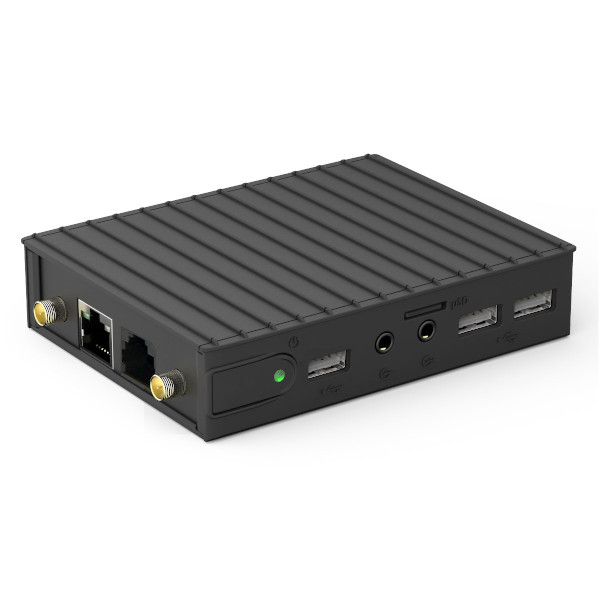

IOT-GATE-iMX7-Series

IOT-GATE-iMX7-Series

Compulab
SKU: 57428000
ARM Based Gateway, NXP i.MX 7Dual + ARM Cortex-M4 CPU, up to 2GB DDR3L RAM, DVI, Audio, up to: 2xLAN, PoE, 3xCOM, 4xUSB, GPIO, SPI, UART, I2C, 32GB eMMC, Micro-SD, mini-PCIe, WiFi, BT, 3G/4G, GPS, 8..24V DC, -40..85C Operating temp.
Price on request
Available
Available

System configuration
Price with VAT
Price on request
System configuration
Price with VAT
Price on request

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
NXP i.MX7 Dual
Socket
CPU onboard
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3L
Maximum Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
USB Total
5
USB 2.0
5
Digital Input-Output
GPIO
Yes
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Micro-SIM
Antenna characteristics
Cellular interfaces
3G (Optional), 4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
HDMI, RJ11, 2xRJ45 Ethernet, 4xUSB, Line In, Line Out, DC Input, SIM Card Slot, GPIO (terminal block), MicroSD card slot, Console Port Micro USB
System Power Input
Input Voltage DC
8 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
108 mm
Height
83 mm
Depth
24 mm
Operating Conditions
Operating Temperature
0..70 °C
MTBF
200000 h
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.45 kg
Gross Weight
3 kg
