IKMH100

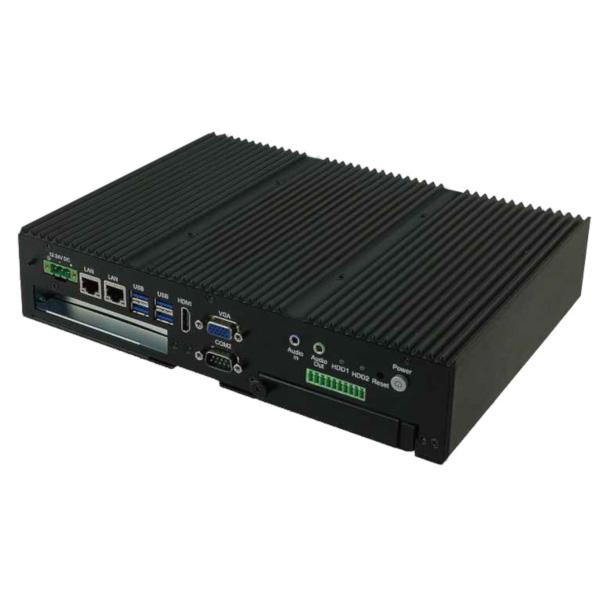

IKMH100 Fanless Embedded PC with Intel Core i5-6200U, up to 8 GB DDR4 RAM, 64 GB SSD, Dual LAN, COM, HDMI With its fanless, modular design, and high performance of an Intel Core i5 processor, the IKMH100 provides a multifunctional and high-performance embedded box computer as a desktop PC or wall mount, which, unlike many other models, can be customized with PCI express or a second drive. The high performance of the IKMH100 is due to an Intel Core i5-6200U with two cores and a clock frequency of up to 2.80 GHz, which has a very low power loss of 15 watts TDP for fanless operation. The fast data processing ensures a fast DDR4 RAM, which is offered as either 4 GB or optionally for higher computing power as 8 GB RAM in Dual Channel. Internally, the compact Industrial Embedded Computer has drive bays for two drives with a 64 GB SSD in 2.5'' format as the primary and up to a 256 GB SSD as a secondary storage medium. In addition, the IKMH100 has slots for an extension card in PCI Express x4 as well as for a 3G SIM card. To support the high functionality of the compact industry embedded PC, the user has a wide selection of different standards available as interfaces for peripheral devices. The fanless IKMH100 provides ports for Serial COM with RS232/422/485, quad USB 3.0 and dual LAN network with 10/100/1000 Mbit/s bandwidth. As a multimedia connection, in addition to Audio in/out there are graphic outputs for VGA DB15 and HDMI, which allow the connection of a maximum of two independent displays or touch screens. In this case, the device is automatically set up via an integrated detection that sets important BIOS parameters during the boot process. An addition the wireless network access WLAN 802.11 or WWAN is optionally possible via the SIM card. The IKMH100 has a compact and fanless design that reduces maintenance and eliminates completely the need of mechanical components. The aluminum housing is equally suitable for desktop PC as for wall mount and is also offered in a special version for panel mount with a front display. The maximum power consumption is 80 watts and the variable input voltage is between 9V DC and 29V DC.
