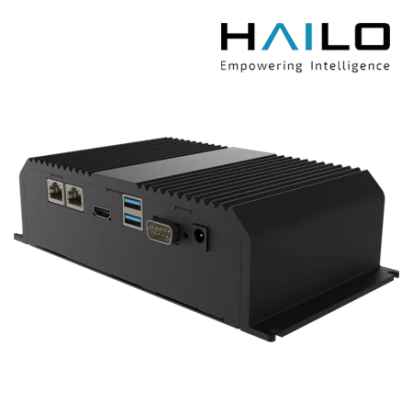

IE32SB3-101AI

IE32SB3-101AI

Winmate
SKU: 57907800
Fanless Edge AI Box PC, Intel Atom x6413E 3.0GHz CPU, 8GB DDR4 RAM, 256GB M.2 (SATA) SSD, Hailo 8 AI Accelerator, HDMI Opt., 2x2.5GbE LAN, 2xUSB 3.2, 1xCOM, 2xCOM Opt., TPM 2.0, 12VDC-in with Power Adapter
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall, Wall VESA 75
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6413E
Socket
FCBGA1493
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
HDMI
Ethernet
2,5 Gbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
256 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 B
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
205 mm
Height
55 mm
Depth
110 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.1 kg
Gross Weight
1.7 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall, Wall VESA 75
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6413E
Socket
FCBGA1493
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
HDMI
Ethernet
2,5 Gbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
256 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 B
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
205 mm
Height
55 mm
Depth
110 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.1 kg
Gross Weight
1.7 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall, Wall VESA 75
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6413E
Socket
FCBGA1493
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
HDMI
Ethernet
2,5 Gbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
256 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 B
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
205 mm
Height
55 mm
Depth
110 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.1 kg
Gross Weight
1.7 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall, Wall VESA 75
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6413E
Socket
FCBGA1493
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
HDMI
Ethernet
2,5 Gbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
256 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 B
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
205 mm
Height
55 mm
Depth
110 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.1 kg
Gross Weight
1.7 kg

Documentation
IE32SB3-101AI-Datasheet.pdf
Documentation
IE32SB3-101AI-Datasheet.pdf
Documentation
IE32SB3-101AI-Datasheet.pdf
Documentation
IE32SB3-101AI-Datasheet.pdf
