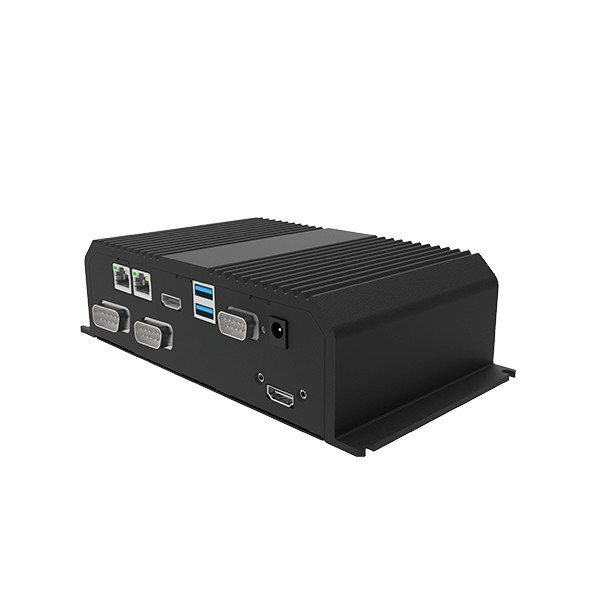

IE32SB3-101

IE32SB3-101

Winmate
SKU: 57632800
Embedded Fanless Box PC, Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB M.2 SSD, HDMI, Additional HDMI or CVBS Optional, 1xCOM, 2xGbE LAN, 2xUSB 3.2, 1xM.2 2230 Key-E Optional, 1xM.2 2242 Key-B, TPM 2.0, 12VDC-in Power Jack w/ PSU, 0..55C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Memory
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
Extension Slots
Total
2
M.2
2
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
205 mm
Height
55 mm
Depth
110 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Gross Weight
4.5 kg
