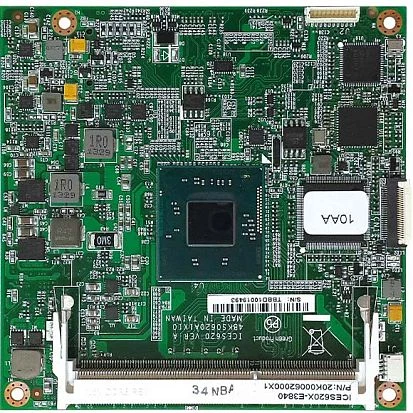

ICES-620-HCAD3

ICES-620-HCAD3

NEXCOM
SKU: 57824300
COM Express Type 6, Compact Module, Intel Celeron J1900 2GHz, Up to 8GB DDR3L RAM, 2xDP/VGA, COM Express (AB: VGA/HDA/2xSATA/GbE/4xPCIe x1/7xUSB 2.0 ; LPC bus/SDIO/GPIO/SMBus(I2C)/SPI BIOS ; CD: USB 3.0/2xDP/HDMI), Audio, 12VDC-in ATX, 0..60C
Price on request
Available
Available

System Architecture
Form Factor
COM Express Compact
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA, 2xDisplayPort
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
8
USB 2.0
7
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
Extension Slots
PCI Express x1
4
COM Express
2
Dimensions and weight
Width
95 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.44 kg
Gross Weight
0.5 kg
