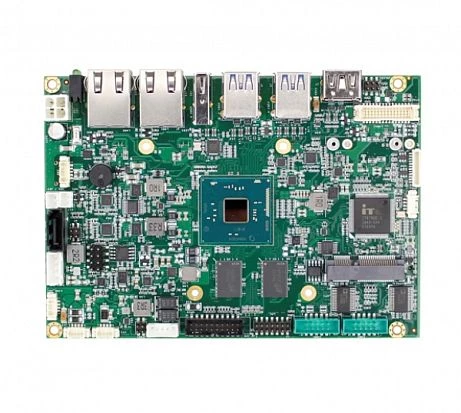

IBW-35-E4

IBW-35-E4

ICOP
SKU: 09264300
3.5" SBC, Intel Braswell x5-E8000 1.04GHz, 4GB DDR3L 1600, HDMI, VGA, LVDS, 2xGbE LAN, 4xCOM, 6xUSB, 16xGPIO, MiniPCIe, Audio
Price on request
Available
Available
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Atom x5-E8000
Max CPU frequency
2 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Interfaces
HDMI
Ethernet
Controller Type
Realtek RTL8111H
Total Ethernet
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC262-VD
Drive interfaces
mSATA
1
MicroSD
1
Extension Slots
SIM Card slots
1
Mini-PCIe/Mini Card
2
Software
Operating System Compatibility
Windows 7, Linux OS, Windows 10
Dimensions and weight
Width
102 mm
Length
146 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.1 kg
Gross Weight
0.5 kg
CPU
