IB70SB7-101

IB70SB7-101

Winmate
SKU: 56538600

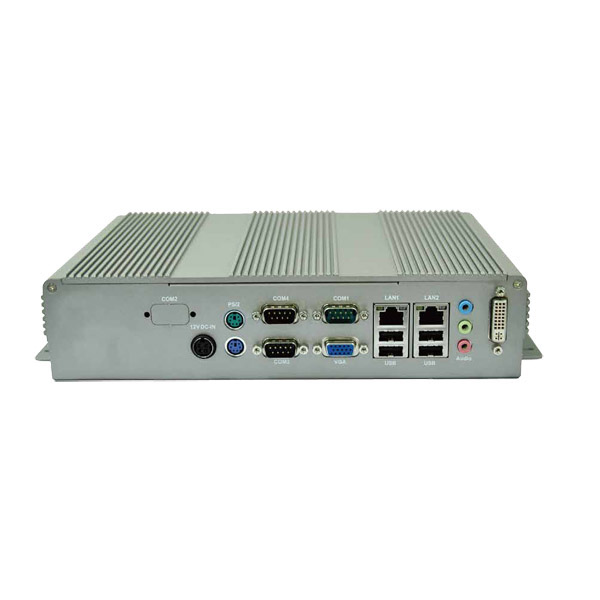

Embedded Fanless Box PC, Intel Celeron N2930 1.83GHz CPU, 4GB DDR3L RAM, 128GB mSATA SSD, VGA, 3xCOM, 2xGbE LAN, 1xUSB 3.2, 5xUSB 2.0, 2.5" Drive Bay, 1xmSATA, 2xmPCIe, 2xPS/2, Audio, 12VDC-in Power Jack w/ PSU, 0..50C
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
6
USB 2.0
5
USB v3.x
1
Connectors
Connectors
DB15 VGA, 2xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out, 2xPS/2 Keyboard/Mouse
System Power Input
Input Voltage DC
12 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 10 IoT Enterprise
Dimensions and weight
Width
264 mm
Height
57 mm
Depth
192 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
3.2 kg
Gross Weight
4 kg
