IB1000

Arbor
SKU: 57853600

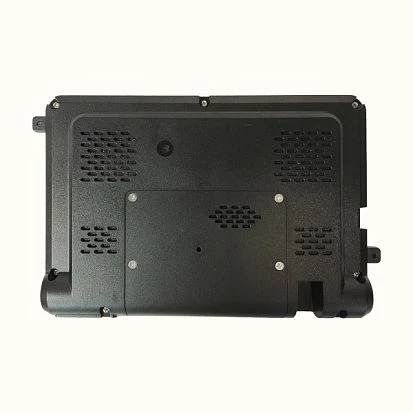

7" Rugged Tablet PC, 800x480, 400cd/m2, Resistive Touch, IP42, Freescale i.MX6 Quad-Core CPU, 1GB LPDDR2 RAM, 8GB eMMC, MicroSD, 2xMini-USB, SIM, 5MP Front, 5MP Rear, WiFi/BT/3G, GPS, Audio/Mic, 1050mAh, 12VDC-In, -10..70C
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Protection Level of Chassis
IP42
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
800x480 Dots
Brightness
400 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
NXP i.MX6 quad-core
Socket
CPU onboard
Chipset
Chipset
SoC
Memory
Form-factor
DDR2
Socket Type
Soldered
ECC
No
Default on Board Memory
1 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
USB Total
2
USB 2.0
2
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
8 GB
2nd Storage Capacity
8 GB
Extension Slots
SIM Card slots
Yes, 1
Additional Functions
Camera Frontside
5 MP
Rear Camera
5 MP
GPS
GPS
Antenna characteristics
Cellular interfaces
3G
Bluetooth
v3.0
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, Function Keys, Volume Keys
Connectors
Connectors
2xUSB, DC Input, MicroSD card slot
System Power Input
Input Voltage DC
12..12 V
Power Consumption
36 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-ion
Battery Capacity
1050 mA*h
Software
Operating System Installed
Android
Dimensions and weight
Width
247.5 mm
Height
160.2 mm
Depth
30.6 mm
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
10-90%
Vibration
20 to 1000 Hz @ 3 grms
Shock
11 ms @ 30G
Dimensions
Net Weight
0.86 kg
Gross Weight
1.1 kg
