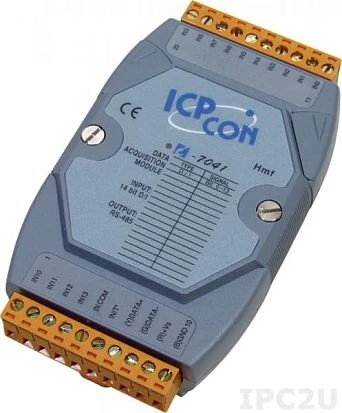

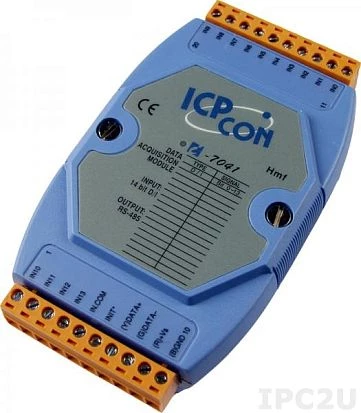

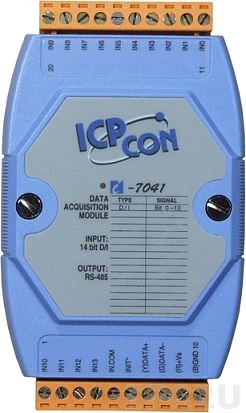

I-7041
ICP DAS
SKU: 01110800
14 Channels Isolated Digital Input Module
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Digital Input
Total channels of digital input
14
Type
Wet contact
Level of Logic "0"
4~30 V
Level of Logic "1"
0~1 V
Sink/Source
Sink, Source
Counter
100Hz, 16 bit
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.25 kg
Gross Weight
0.25 kg
