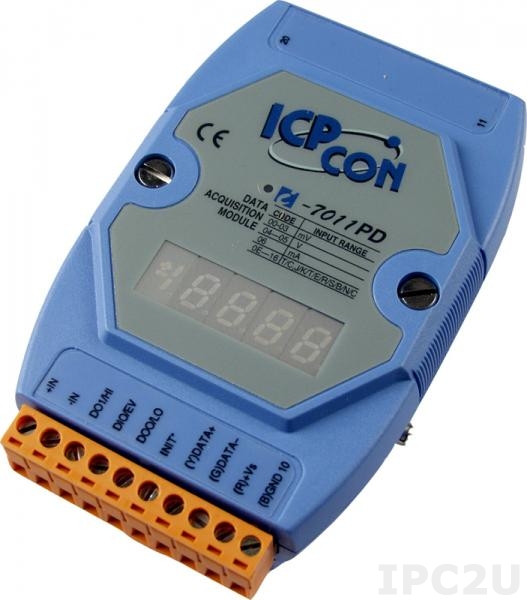

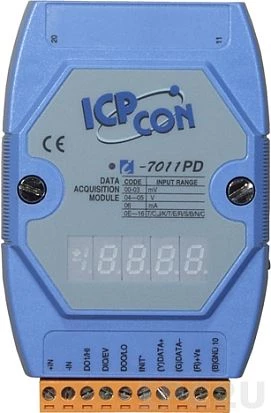

I-7011PD

I-7011PD

ICP DAS
SKU: 01077700
1 Channel Thermocouple Input Module with LED Display
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Character
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Analog Input
Total channels of analog input
1
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
-20...+20 mA
Sampling rate
10 Hz
Differential channels
1
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С
Digital Input
Total channels of digital input
1
Type
Dry contact
Sink/Source
Source
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
2
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~30 V
Max. load current
30 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.35 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Character
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Analog Input
Total channels of analog input
1
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
-20...+20 mA
Sampling rate
10 Hz
Differential channels
1
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С
Digital Input
Total channels of digital input
1
Type
Dry contact
Sink/Source
Source
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
2
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~30 V
Max. load current
30 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.35 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Character
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Analog Input
Total channels of analog input
1
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
-20...+20 mA
Sampling rate
10 Hz
Differential channels
1
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С
Digital Input
Total channels of digital input
1
Type
Dry contact
Sink/Source
Source
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
2
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~30 V
Max. load current
30 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.35 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Display
Display Type
LED Character
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Analog Input
Total channels of analog input
1
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
-20...+20 mA
Sampling rate
10 Hz
Differential channels
1
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С
Digital Input
Total channels of digital input
1
Type
Dry contact
Sink/Source
Source
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
2
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~30 V
Max. load current
30 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.35 kg

Documentation
I-7011/I-7018 Instruction Manual (rus.) datasheet 7011 I-7011/11D, I-7011P/PD, I-7018, I-7018P. User Manual. 7000 Series Dimension I-7000 Series modules. Catalog.
Software
DCON Utility
Documentation
I-7011/I-7018 Instruction Manual (rus.) datasheet 7011 I-7011/11D, I-7011P/PD, I-7018, I-7018P. User Manual. 7000 Series Dimension I-7000 Series modules. Catalog.
Software
DCON Utility
Documentation
I-7011/I-7018 Instruction Manual (rus.) datasheet 7011 I-7011/11D, I-7011P/PD, I-7018, I-7018P. User Manual. 7000 Series Dimension I-7000 Series modules. Catalog.
Software
DCON Utility
Documentation
I-7011/I-7018 Instruction Manual (rus.) datasheet 7011 I-7011/11D, I-7011P/PD, I-7018, I-7018P. User Manual. 7000 Series Dimension I-7000 Series modules. Catalog.
Software
DCON Utility
