GOT-5152T-834-J

GOT-5152T-834-J

AXIOMTEK
SKU: 06762100

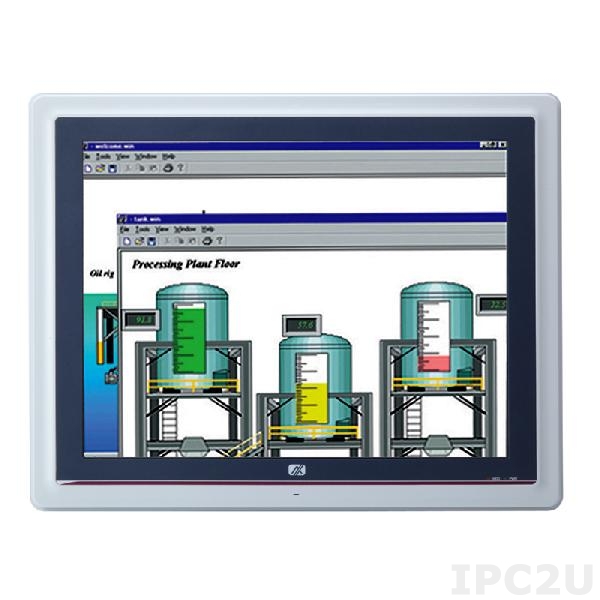

15" XGA TFT Fanless Touch Panel Computer with Intel Celeron J1900 2.00 Ghz, Resistive touchscreen, 1x204-pin DDR3L-1333, 2.5" SATA HDD bay, 1x CF slot, 3xCOM, 4xUSB, 2xLAN, Audio, 1xVGA, 2xPCle Mini, power adapter 100-240V AC DC 60W
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
3xDB9, DB15 VGA, 2xRJ45, 4xUSB, Line Out, AC Input (Screw Terminal)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
387.9 mm
Height
307.7 mm
Depth
54.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
2G, 5 ~ 500Hz, random for CFast
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
3.2 kg
Gross Weight
5.1 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
3xDB9, DB15 VGA, 2xRJ45, 4xUSB, Line Out, AC Input (Screw Terminal)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
387.9 mm
Height
307.7 mm
Depth
54.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
2G, 5 ~ 500Hz, random for CFast
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
3.2 kg
Gross Weight
5.1 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
3xDB9, DB15 VGA, 2xRJ45, 4xUSB, Line Out, AC Input (Screw Terminal)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
387.9 mm
Height
307.7 mm
Depth
54.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
2G, 5 ~ 500Hz, random for CFast
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
3.2 kg
Gross Weight
5.1 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
3xDB9, DB15 VGA, 2xRJ45, 4xUSB, Line Out, AC Input (Screw Terminal)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
387.9 mm
Height
307.7 mm
Depth
54.6 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
2G, 5 ~ 500Hz, random for CFast
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
3.2 kg
Gross Weight
5.1 kg

Documentation
Datasheet GOT-5152T-834
Documentation
Datasheet GOT-5152T-834
Documentation
Datasheet GOT-5152T-834
Documentation
Datasheet GOT-5152T-834
