GOT-318W-521-R-DC

GOT-318W-521-R-DC

AXIOMTEK
SKU: 09585900

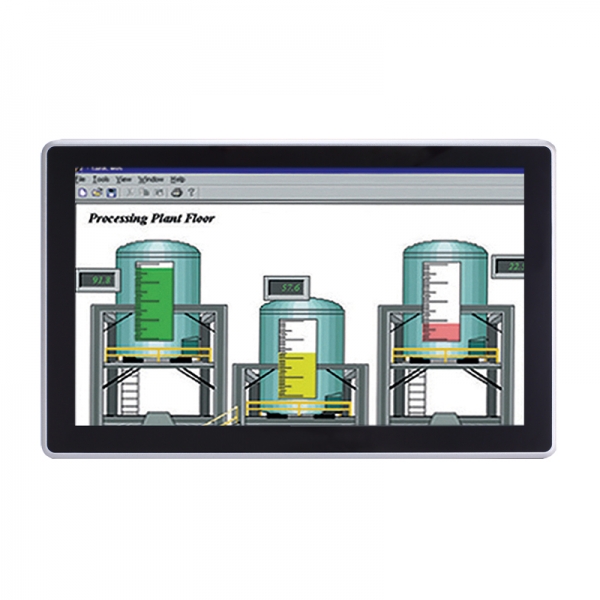

18.5" FHD TFT Fanless Touch Panel Computer, LGA1151 Socket for Intel Core i7/i5/i3/Celeron 9th/8th Gen, 5-wire resistive touch, DDR4, 1x2.5" SATA HDD, HDMI, VGA, 2xGbE LAN, DP, 2xCOM, 4xUSB, Audio, Mini PCIe, M.2 Key E 2230, 12/19/24V DC
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off, AT/ATX Switch
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Consumption
120 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
460.8 mm
Height
285 mm
Depth
77 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4
Dimensions
Net Weight
7.8 kg
Gross Weight
10.2 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off, AT/ATX Switch
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Consumption
120 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
460.8 mm
Height
285 mm
Depth
77 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4
Dimensions
Net Weight
7.8 kg
Gross Weight
10.2 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off, AT/ATX Switch
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Consumption
120 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
460.8 mm
Height
285 mm
Depth
77 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4
Dimensions
Net Weight
7.8 kg
Gross Weight
10.2 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off, AT/ATX Switch
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Consumption
120 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
460.8 mm
Height
285 mm
Depth
77 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4
Dimensions
Net Weight
7.8 kg
Gross Weight
10.2 kg

Documentation
Datasheet GOT-318W-521
Documentation
Datasheet GOT-318W-521
Documentation
Datasheet GOT-318W-521
Documentation
Datasheet GOT-318W-521
