GOT-315W-521-PCT-DC

AXIOMTEK
SKU: 09510900

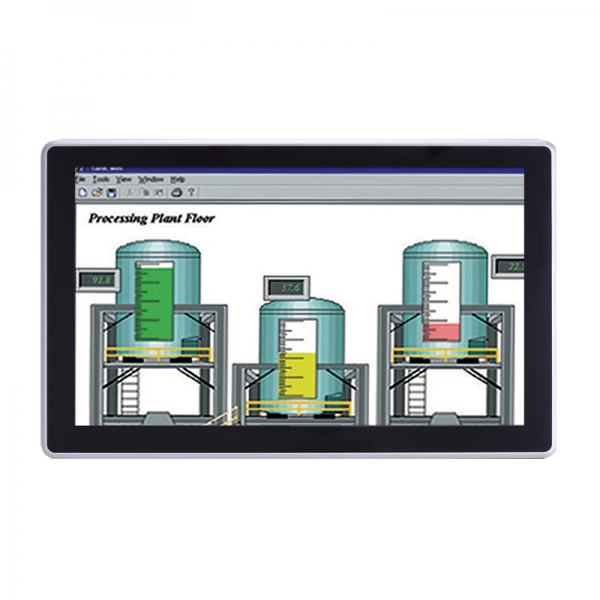

15.6" WXGA TFT Fanless Touch Panel Computer, PCAP, LGA1151 socket for 9th/8th gen Intel Core i7/i5/Pentium, DDR4, VGA, DP, HDMI, 2xGbE LAN, 2xCOM, 2xUSB 3.0, 2xUSB 2.0, PCIe Mini, mSATA, M.2 Key E 2230, 12/19/24VDC-in, IP65 Front
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED
Controls
Control Buttons
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..24 V
Power Consumption
70 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
396.8 mm
Height
247.1 mm
Depth
53 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
1.0G
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
6.5 kg
Gross Weight
8.18 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED
Controls
Control Buttons
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..24 V
Power Consumption
70 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
396.8 mm
Height
247.1 mm
Depth
53 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
1.0G
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
6.5 kg
Gross Weight
8.18 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED
Controls
Control Buttons
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..24 V
Power Consumption
70 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
396.8 mm
Height
247.1 mm
Depth
53 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
1.0G
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
6.5 kg
Gross Weight
8.18 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall
Protection Level of Front Side (Panel)
IP65, NEMA 4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED
Controls
Control Buttons
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..24 V
Power Consumption
70 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
396.8 mm
Height
247.1 mm
Depth
53 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
1.0G
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
6.5 kg
Gross Weight
8.18 kg

Documentation
Datasheet GOT-315W-521
Documentation
Datasheet GOT-315W-521
Documentation
Datasheet GOT-315W-521
Documentation
Datasheet GOT-315W-521
