G0975
Arbor
SKU: 06647800

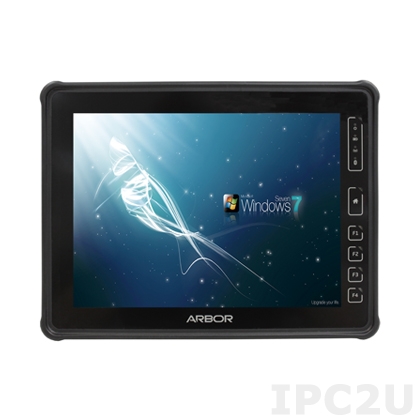

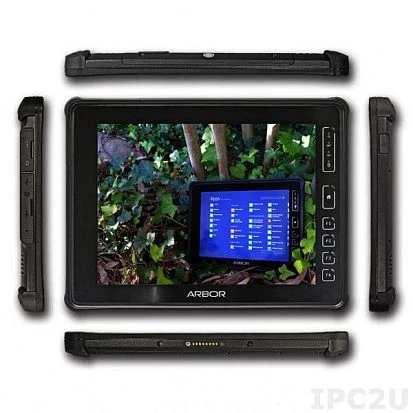

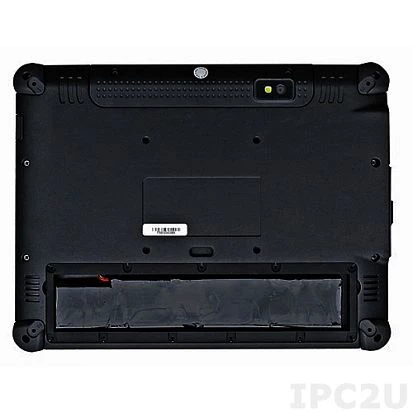

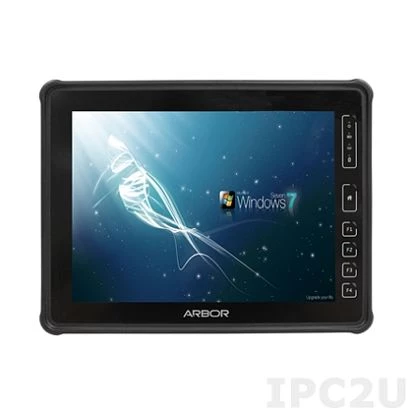

9.7" Gladius G0975 Rugged Tablet PC with Intel Celeron N2930 1.83GHz CPU, Projected Capacitive Touch Screen, 2GB DDR3L, 32Gb SSD, 1x microSD/SDHC/SDXC, 2xUSB, mini-HDMI, WLAN, Bluetooth, 5.0MP Camera, 2270mAh battery pack, power adapter 100-240V AC
1 340,81 €
Price excl. VAT and shipping cost
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD IPS
Diagonal
9.7 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
mSATA
1
SD Slots
1
MicroSDHC
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
32 GB
Additional Functions
Rear Camera
5 MP
Sensors
Light Sensor, Magnetometer, Gyroscope, Accelerometer
Antenna characteristics
Bluetooth
v4.0
LED / Controls
LED
Battеry Status, Power LED, WLAN LED, Bluetooth LED
Controls
On/Off, 1xReset, Control Buttons

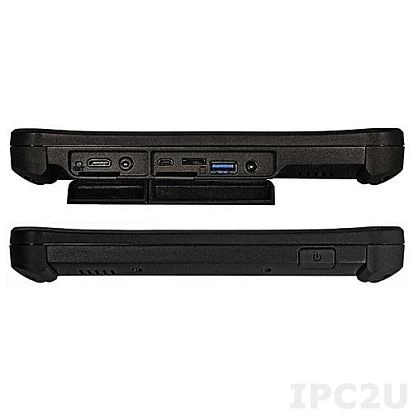

Connectors
Connectors
2xUSB, MicroSD card slot, Mini HDMI
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
2270 mA*h
RunTime Battery 1
0 h
Additional Battery Type
Li‑ion
Additional Battery Capacity
2270 mA*h
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8
Dimensions and weight
Width
258 mm
Height
198 mm
Depth
22.5 mm
Operating Conditions
Operating Temperature
-20..45 °C
Vibration
20 to 1000 Hz @ 1 grms per MIL-STD 810G (operating); 20 to 1000 Hz @ 3 grms per MIL-STD 810G (nonoperating)
Shock
11 ms @ 20G per MIL-STD 810G for unit only (operating); 11 ms @ 40G per MIL-STD 810G for unit only (nonoperating)
Standards and Certifications
Certifications
CE, FCC
EMS
EN 55022 Class B
MIL-STD-810
MIL-STD-810G Test Method 516.4 Drop 120 cm
Dimensions
Net Weight
1 kg
Gross Weight
2.2 kg
